BWSESS30K
Brightway Solar

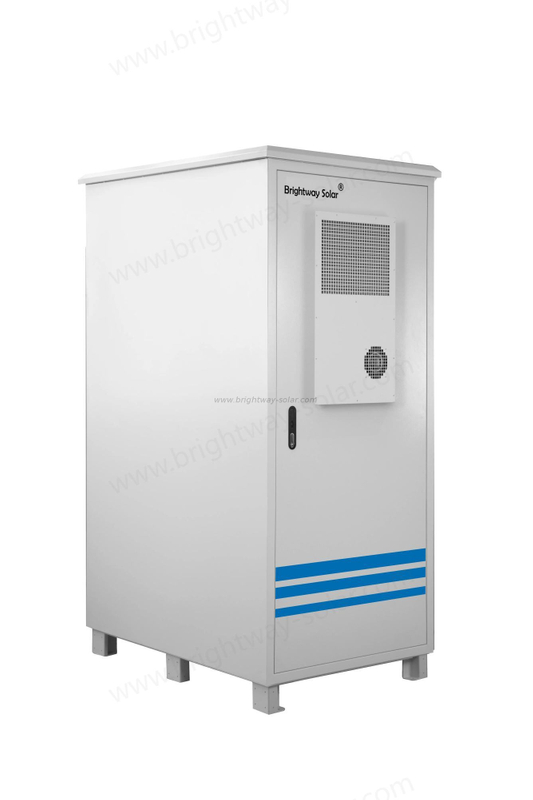

This cutting edge outdoor power station stands out with its remarkable capability to achieve the highest power density efficiency, peaking at an impressive 98.4%. Additionally, it is equipped with a low-consumption fan that is backed by an intelligent temperature regulation system, ensuring optimal performance and reliability in various environmental conditions.
Technical Specifications
| Model | BWSESS30K |
| DC Input | |
| Max. power(KW) | 36KW |
| Max. DC votageM | 1000V |
| MPPT vdtage range(M) | 180V-900V/630V |
| MPPT operaing vallage range at raled power | 300V-900V |
| MPPT tracker/stings | 2/2/2 |
| Max.input current of single MPPT(A) | 36A*3 |
| Shor-circuit current of PV input(A) | 42A/42A/42A |
| AC Output | |
| Rated output power(KW) | 30KW |
| Max. apparent AC power(KVA) | 30KVA |
| Max. output current(A) | 45A |
| Grid voltage/range(V) | 400V,3L+N+PE |
| Frequengy (Hz) | 5060Hz |
| PF | 1(0.8lagging-O.&leading) |
| THDI | 3% |
| Battery | |
| Battery capacity(KWH) | 53KWH-173KWH |
| Battery type | UiFePO4 battery |
| Battery Modue | 51.2V 130AH BYD blade battery modue |
| Number of batlery racks | 1-2 |
| Battery vatage range(M) | 220V~800V |
| Max. input/output vatage(M | 800V |
| Rated charge/discharge current(A) | 100A |
| Max, input/output power(KW) | 30KW |
| EPS Output | |
| Rated output power(KW) | 30KW |
| Max.Apparent AC power(KVA) | 30KVA |
| Max. singke-phase apparent output power | 10KVA |
| Rated output voltage(V) | 400V,3L+N+PE |
| Rated output current(A) | 45A |
| Rated frequency (Hz) | 50Hz/60Hz |
| Automa ic swiching time (ms) | <10ms |
| THDU | <3% |
| Overload capacity | 110%,30S/120%,10S/150%,0.02S |
| Protection Parameters | |
| AC over current protecson | Yes |
| Ground faut detection protecion | Yes |
| Power grid morioning prolection | Yes |
| Residual current detection protedion | Yes |
| General Data | |
| Euro Effikieny | >98.2% |
| Noise Emission (Typical) | <45dB |
| Operation Temperature | -25~+60℃ |
| Relative Humicity | 5~90%(non-condensing) |
| AHiude | 4000m(>2.000 Derating) |
| Dimensions (W/D/H) mm | 1000*1650*2050 |
| Weight(kg) | Customizason |
| Inverier Topology | transformerless |
| Self-Consumpion | <3W |
| Ingress protection | IP54 |
| Fire extinguishing system | Opional |
| Operating temperature | -30℃~55℃ |
| PCS cooing way | Intehigent Fan |
| Battlery codling way | Air condioning cocing |
| Display and Communication | |
| Display | LCD |
| Interface RS485/WFVGPRS | yes /optiopt |
