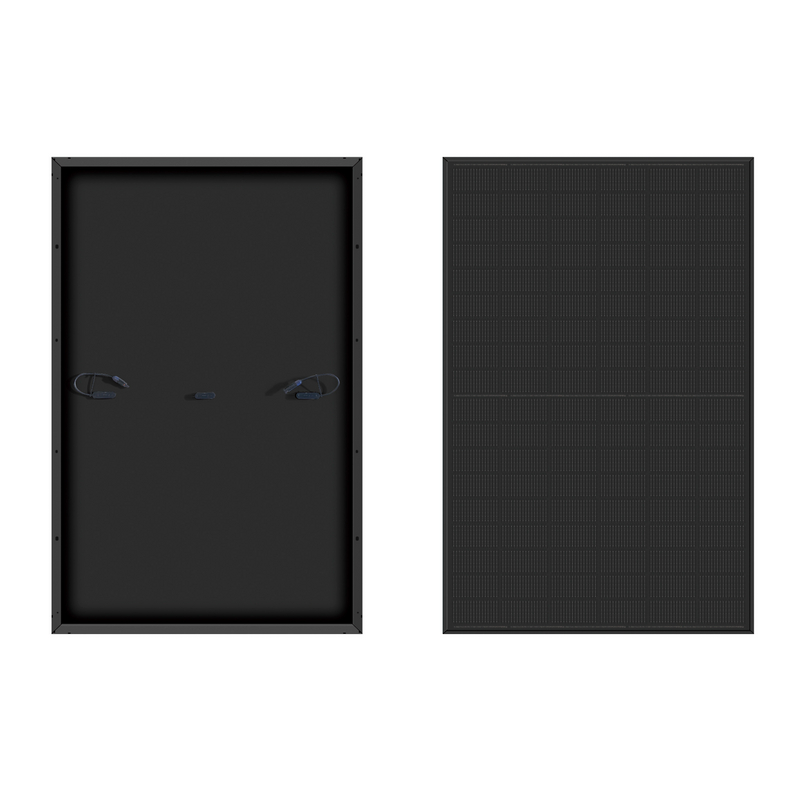

BWGPT425W(108)
Brightway Solar
The BWGPT425W(108) features a maximum power voltage of 31.49V and a maximum power current of 13.50A, ensuring efficient power transfer. Its open-circuit voltage of 37.55V and short-circuit current of 14.23A ensure reliable operation and safety. Ideal for residential, commercial, and utility-scale applications, this module offers versatility and durability, backed by robust temperature coefficients that maintain performance across varying conditions.
| Module Type | BWGPT425W(108) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 425Wp | 316.6Wp |
| Maximum Power Voltage (Vmp) | 31.49V | 29.14V |
| Maximum Power Current (lmp) | 13.50A | 10.86A |
| Open-circuit Voltage (Voc) | 37.55V | 35.19V |
| Short-circuit Current (lsc) | 14.23A | 10.86A |
| Module Efficiency STC (%) | 22.02% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/°C | |
| Temperature coefficients of Voc | -0.25%/°C | |
| Temperature coefficients of Isc | 0.045%/°C | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
