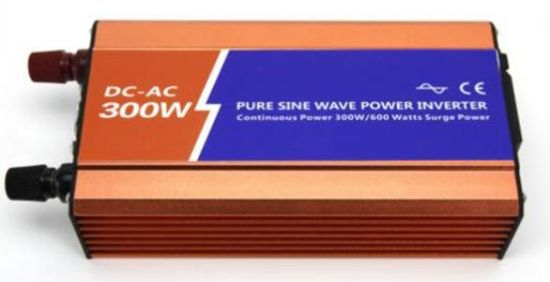

300W High Frequency Pure Sine Wave Power Solar Inverter

Quantity:
  • BWI-HF300W
  • Solar Power
  • Full-Bridge Type
  • Sine Wave Inverter
  • Brightway
  • Carton
  • Yangzhou
  • 8504403090
  • Yangzhou, China
  • 10000PCS/Year
  • L/C, T/T, Western Union, Money Gram
Product features:

1. Advanced intelligent control technology of dual-cpu single chip microcomputer, featuring high reliability and low fault rate;

2. Pure sinusoidal output with strong loading capacity and wide application range;

3. It has complete protection functions (overloading protection, internal over-temperature protection, output short-circuit protection, input under-voltage protection, input over-voltage protection, etc.), which greatly improves the reliability of the product;

4. Small size and light weight. CPU centralized control and patch technology are adopted internally to make the volume very small and light;

5. Intelligent control of the cooling fan, which adopts CPU to control the working state of the cooling fan, greatly extends the service life of the fan, saves power and improves working efficiency;

6. Low noise and high efficiency

Scope of application

1. Vehicle-borne equipment series: ** vehicles, police cars, medical ambulances, ships, traffic lights, etc.;

2. Industrial equipment series: solar energy, wind power generation, gas discharge lamp, etc.

3. Office: computer, printer, copier, scanner, digital camera, etc.

4. Kitchen appliance series: microwave oven, battery oven, refrigerator, etc.

5. Household electrical equipment: electric fans, vacuum cleaners, air conditioners, lighting lamps, etc.;

6. Power tools series: electric saw, drilling machine, punching machine, air compressor, etc.;

Technical indicators
The machine model B12P300-1 B24P300-1 B48P300-1 B12P300-2 B24P300-2 B48P300-2
The output power 300W
Peak power 600W
The input voltage DC12V DC24V DC48V DC12V DC24V DC48V
The output voltage 100VAC or 110VAC or 120VAC ±5% 220VAC or 230VAC or 240VAC ±5%
The no-load current is less than 0.5A 0.3A 0.1A 0.5A 0.3A 0.1A
The output frequency 50HZ±0.5HZ or 60HZ±0.5HZ
Output waveform Pure sine wave
Waveform distortion THD<3%
USB 5V 500MA
Highest output efficiency MAX94%
Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Under-voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
Under voltage protection 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
Owe pressure recovery 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±0.5V
Overpressure recovery 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±0.5V
Protection function Undervoltage/overvoltage LED red light on, automatic recovery alarm
overload LED red light on, lock alarm
A temperature LED red light on, automatic recovery alarm
A short circuit LED red light on, automatic recovery alarm
Input the reverse Diodes or MOS
Working environment temperature. -10°- +50°
Storage environment temperature -30°- +70°
Product size 162*105*52
The net weight 0.8
Quantity/carton 18units
Packing size 212*141*83
The quality assurance 1years
Start the Bipolar soft start
cooling Air cooling
