BWGPG570W(144)
Brightway Solar

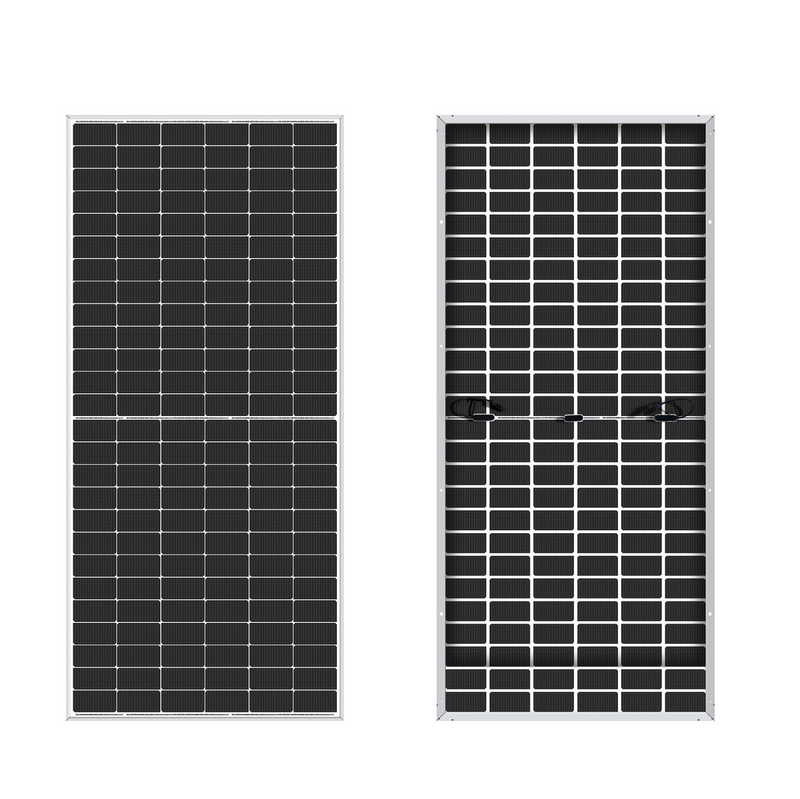

BWGPG570W solar module boasts 570Wp max power, 22.07% efficiency, and operates from -40℃ to +85℃. It has 41.54V Vmp, 13.72A Imp, and rated for 1500V DC system voltage. With -0.29%/℃ Pmax temp. coefficient, it ensures reliable performance. Ideal for residential, commercial, and industrial use.
| Module Type | BWGPG570W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 570Wp | 424.7Wp |
| Maximum Power Voltage (Vmp) | 41.54V | 38.44V |
| Maximum Power Current (lmp) | 13.72A | 11.05A |
| Open-circuit Voltage (Voc) | 50.04V | 46.90V |
| Short-circuit Current (lsc) | 14.39A | 11.59A |
| Module Efficiency STC (%) | 22.07% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
