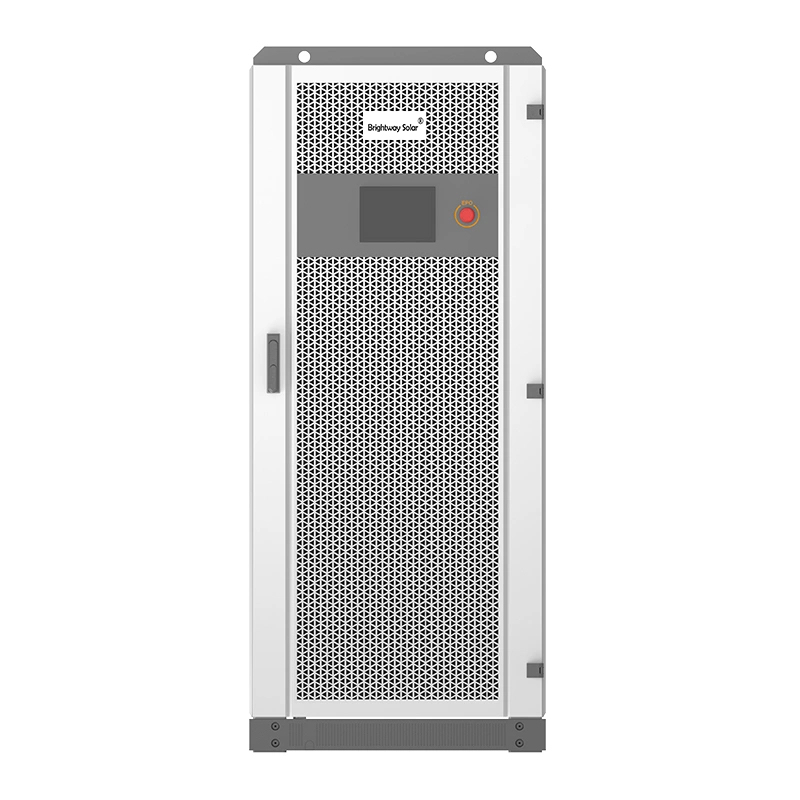

BWS-50KT-CP
Brightway Solar
The system or device has passed various certification tests including IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, and CGC, demonstrating its compliance with international and domestic safety and quality standards. With over 400MW of application cases and a remarkable record of "zero" safety accidents, it boasts parallel usage capabilities for multiple sets, covering a wide power range from 30kW to 3000kW, and is compatible with LFP, lead-acid, and other battery types, exhibiting high flexibility and market adaptability.
Technical Specifications
| Model | BWS-50KT-CP |
| DC(battery) | |
| Voltage range (V) | 320V-850V |
| Max. Current (A) | 178A |
| AC(on-grid) | |
| Max output power(kVA) | 55kVA |
| Rate output power(kW) | 50KW |
| Rated voltage(V) | 400V |
| Voltage range(V) | 320V-460V |
| Rated current(A) | 72A |
| Max. output current(A) | 80A |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range (Hz） | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging-1leading（Settable） |
| AC connection | 3W+N+PE |
| AC(off grid) | |
| Rated voltage(V) | 400V |
| THDU | ＜1% Linear ＜5% Nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| General data | |
| Max.efficiency | 96.50% |
| Ingress protection | IP21 |
| Noise emission(dB) | <70dB |
| Operating temperature | －30～+55℃ |
| Cooling | Forced air cooling |
| Relative humidity | 0~95% non condensing |
| Altitude | 5000m (derating above 3000m) |
| Dimension W*D*H (mm) | 800×800×1900mm |
| Weight(kg) | 676kg |
| Transformer ratio | 200/400 |
| Self-consumption (W) | <10W |
| On/ Off grid switching | Automatic |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485，TCP/IP |
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC |
The system or device has passed various certification tests including IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, and CGC, demonstrating its compliance with international and domestic safety and quality standards. With over 400MW of application cases and a remarkable record of "zero" safety accidents, it boasts parallel usage capabilities for multiple sets, covering a wide power range from 30kW to 3000kW, and is compatible with LFP, lead-acid, and other battery types, exhibiting high flexibility and market adaptability.
Technical Specifications
| Model | BWS-50KT-CP |
| DC(battery) | |
| Voltage range (V) | 320V-850V |
| Max. Current (A) | 178A |
| AC(on-grid) | |
| Max output power(kVA) | 55kVA |
| Rate output power(kW) | 50KW |
| Rated voltage(V) | 400V |
| Voltage range(V) | 320V-460V |
| Rated current(A) | 72A |
| Max. output current(A) | 80A |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range (Hz） | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging-1leading（Settable） |
| AC connection | 3W+N+PE |
| AC(off grid) | |
| Rated voltage(V) | 400V |
| THDU | ＜1% Linear ＜5% Nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% long-term |
| General data | |
| Max.efficiency | 96.50% |
| Ingress protection | IP21 |
| Noise emission(dB) | <70dB |
| Operating temperature | －30～+55℃ |
| Cooling | Forced air cooling |
| Relative humidity | 0~95% non condensing |
| Altitude | 5000m (derating above 3000m) |
| Dimension W*D*H (mm) | 800×800×1900mm |
| Weight(kg) | 676kg |
| Transformer ratio | 200/400 |
| Self-consumption (W) | <10W |
| On/ Off grid switching | Automatic |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485/CAN |
| EMS communication | RS485，TCP/IP |
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC |
