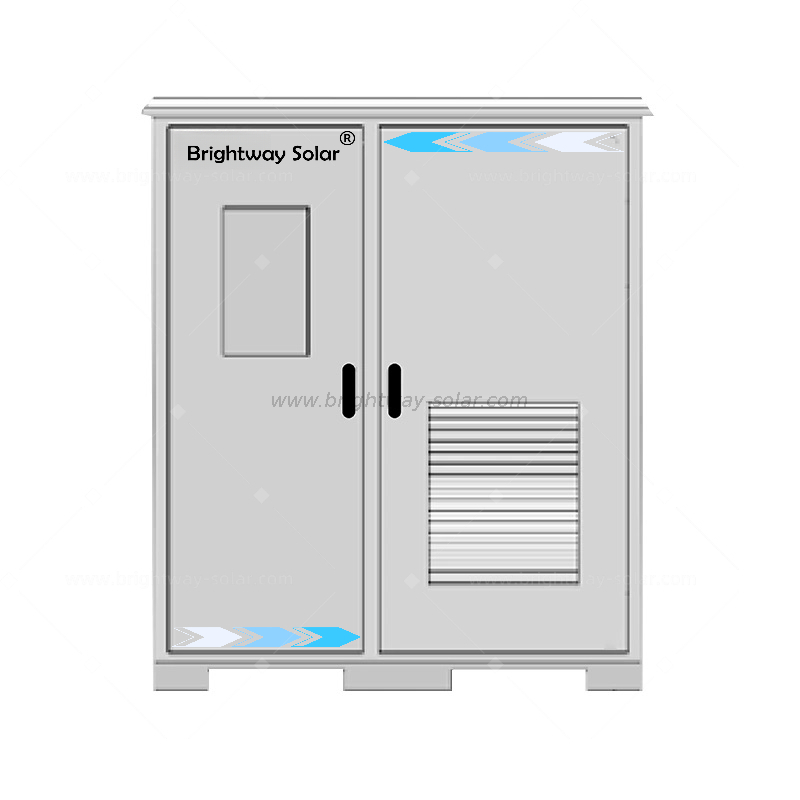

BWS116LFP
Brightway Solar
The solution boasts high integration, compact size, and ease of installation, operation, and maintenance. With an IP54 protection grade, it demonstrates superior environmental adaptability, ensuring reliable performance in various conditions. The solution, powered by LFP Energy Storage, offers excellent durability and safety. Its LFP Energy Storage units provide clean and sustainable energy storage solutions. The built in LFP Energy Storage system is designed for long-term stability and low maintenance. The intelligent control system seamlessly integrates with local monitoring systems, enhancing the management and control of the LFP Energy Storage system. Overall, the solution's LFP Energy Storage capabilities ensure superior performance and safety.
Technical Specifications
| Model | BWS116LFP |
| Performance | |
| Battery type | Lithium-iron phosphate (LiFePO4) |
| Nominal battery energy(KWH) | 116.736KWH |
| Nominal capacity(AH) | 190AH |
| Nominal voltage(V) | 614.4V |
| Operating voltage Range(V) | 480V~700.8V |
| Module number | 24 |
| Standard charging current(A) | Rated current 80A |
| Max. constant charging current(A) | 100A |
| Standard discharging current(A) | Rated current 90A |
| Max. constant discharging current(A) | 100A |
| Cell technology | BYD vehicle grade Lithium-iron phosphate (LiFePO4) |
| Depth of discharge(DOD) | 80% |
| Design life | ＞5000 times @80%DOD |
| Warranty | 5 years |
| Warranty Document Supplied | Yes |
| Compatible hybrid inverters | 30/50KW/100KW C&I Energy storage inverters |
| Protection function | |
| Protection | Over-temperature,over charge,under-voltage,over-current,short circuit alarm Function |
| Communication | |
| Communication | CAN/RS485 |
| General Specification | |
| Dimension(L*W*H)(MM) | 1550*700*2150 |
| Weight(KG) | customization |
| Cabinet color | white |
| Fire extinguishing system | support |
| Air conditioner system | support |
| Shipping status | SOC:30%~40% |
| Charging temperature | -10~+40C |
| Discharging temperature | -20~+40C |
| Short term storage ambient temperature | -28~+40C(<3months,SOC:20%~50%SOC） |
| Long term storage ambient temperature | -20~+40C(1year,SOC:20%~50%SOC） |
| Max. operating altitude | 4,000m(Deratingabove2,000m) |
| Protection degree | IP54 |
| Relative humidity | 5%-95% |
| Battery cooling way | Air conditioning cooling |
| Certification | TUV/CE/IEC/UN38.3/UL1973 |
