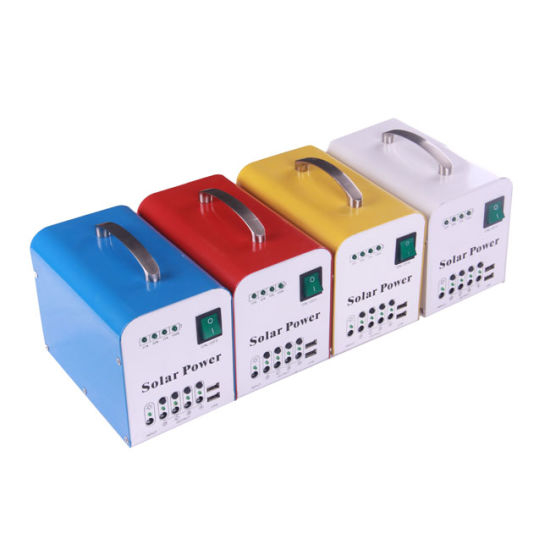

20W Home Solar Energy System with Battery and 3W LED Lights

Quantity:
  • BWP-0005

  • 10W

  • 12V

  • 1 Year

  • Carton

  • Yangzhou

  • Shanghai, China

  • 50000PCS/Year

  • L/C, T/T, Western Union

Product introduction

20W Home Solar Energy System with Battery and 3W LED Lights


Product parameters
Product Name Specification
Solar panel 20W
Solar controller 12V3A
Lead-acid battery 12V7AH
Technical Parameter
Product Name Specification
Solar panel Model No. TYP10 (poly crystalline)
Rated Maximum Power 10W
Maximum Power Voltage (Vmp) 18V
Maximum Power Current (Imp) 0.56A
Open Circuit Voltage(Voc) 21.24V
Short Circuit Current(Isc) 0.611A
Maximum System Voltage 1000V
Operating Temperature -40ºC~+85ºC
Standard Test Conditions 1000W/m2, AM1.5, 25ºC
Lead-acid battery Nominal Capacity 12V7AH
Solar controller Rated Voltage(V) 12V
Maximum charging current(A) 3A
Floating charge protection(V) 14.4V
Equalizing charge protection(V) 13.8V
Voltage range (V) 10.8-16.5V
Operating temp. -40ºC~+60ºC
Accessories PV cables 5m
Remote control 1 pc
USB charging wire 1pc
3w Led lamp 4pcs
5m lamp wire and lamp holder 4 sets
Manual 1pc

Model: BWP-0005
Product Name Description Quantity(pcs)
Solar panel 20W Poly crystalline 1
Controller 12V3A 1
Lead acid battery 12AH 1
Led light 3w 4
PV cables 5m 1
Remote control 1
USB charging line 1
others lamp holder and lamp wire 4
How much electricity the solar system produce?
Charging mode: solar panel
Charging time: By solar panel about 8.4 hours.
Daily production: 68w-108w
Working time(full charged) 3W lamps*2pcs work 14 hours; 3W lamps*4pcs work 7 hours

The solar lighting system can supply power for light,

6''fan, mobile phones, MP3 players and other 5V electronic equipments.

Packing Information
Volume(m³) 0.02 cbm/set
G.W.(kg) 8.1 kg/set
Quantity/20GP

1300 set

20W Home Solar Energy System with Battery and 3W LED Lights


Company Profile

20W Home Solar Energy System with Battery and 3W LED Lights

Payment & Delivery

Payment terms T/T
EXW 30% In advance, 70% before delivery
FOB
CFR/C&F 30% In advance, 70% against copy of B/L
CIF
L/C Total amount above USD70,000, we accept L/C at sight
West Union Total amount less than USD5,000
PayPal
Delivery time 15-20 working days after receiving down payment for one container

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
