BWGPT440W(108)
Brightway Solar

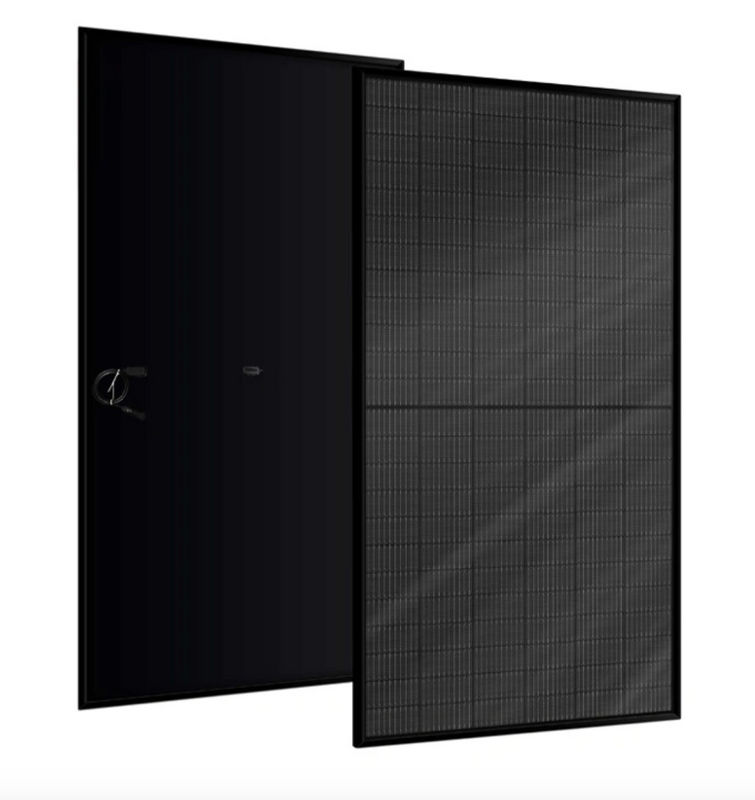

Introducing the BWGPT440W(108) solar module, a premium choice for your renewable energy needs. With a maximum power output of 440Wp under standard test conditions (STC), it delivers exceptional energy efficiency. Boasting a module efficiency of 22.53%, this module ensures optimal power generation. The maximum power voltage of 31.85V and current of 13.81A provide stable performance, while the open-circuit voltage of 37.91V and short-circuit current of 14.56A demonstrate its durability and versatility. Suitable for a wide range of operating temperatures, the BWGPT440W(108) is the perfect addition to your solar energy system.
| Module Type | BWGPT440W(108) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 440Wp | 327.8Wp |
| Maximum Power Voltage (Vmp) | 31.85V | 29.48V |
| Maximum Power Current (lmp) | 13.81A | 11.12A |
| Open-circuit Voltage (Voc) | 37.91V | 35.53V |
| Short-circuit Current (lsc) | 14.56A | 11.12A |
| Module Efficiency STC (%) | 22.53% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/C | |
| Temperature coefficients of Voc | -0.25%/°C | |
| Temperature coefficients of Isc | 0.045%/°C | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
Introducing the BWGPT440W(108) solar module, a premium choice for your renewable energy needs. With a maximum power output of 440Wp under standard test conditions (STC), it delivers exceptional energy efficiency. Boasting a module efficiency of 22.53%, this module ensures optimal power generation. The maximum power voltage of 31.85V and current of 13.81A provide stable performance, while the open-circuit voltage of 37.91V and short-circuit current of 14.56A demonstrate its durability and versatility. Suitable for a wide range of operating temperatures, the BWGPT440W(108) is the perfect addition to your solar energy system.
| Module Type | BWGPT440W(108) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 440Wp | 327.8Wp |
| Maximum Power Voltage (Vmp) | 31.85V | 29.48V |
| Maximum Power Current (lmp) | 13.81A | 11.12A |
| Open-circuit Voltage (Voc) | 37.91V | 35.53V |
| Short-circuit Current (lsc) | 14.56A | 11.12A |
| Module Efficiency STC (%) | 22.53% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/C | |
| Temperature coefficients of Voc | -0.25%/°C | |
| Temperature coefficients of Isc | 0.045%/°C | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
