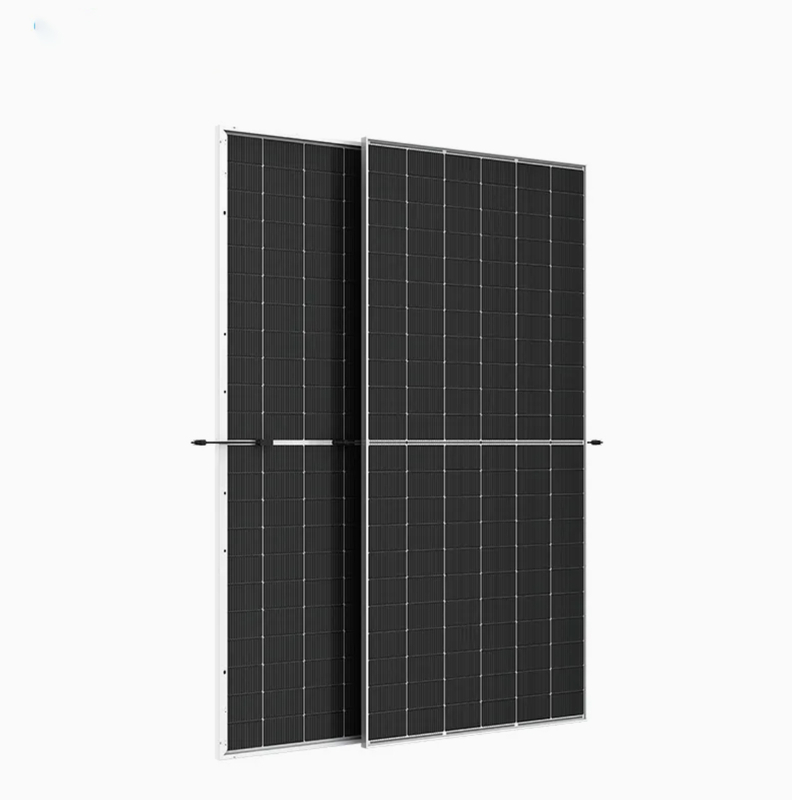

Brightway Solar Jinko 620W Bifacial Module with 132 Cells for Homes And Commerce

The BWGPM620W(132) features SMBB Technology, which provides better light trapping and current collection to enhance module power output and reliability. Additionally, the N-type module with Hot 2.0 technology offers superior reliability and has lower LID/LETID.

Availability:
Quantity:
  • BWGPM620W(132)

  • Brightway Solar


BWGPM12RT-625W(132)-4-1

Function Characteristics

The BWGPM620W(132) features high performance with a maximum power output of 461.9W at STC and a conversion efficiency of 22.93%. It has precise electrical parameters like a Vmp of 38.31V and an Imp of 12.06A. With a Voc of 45.9V and an Isc of 12.81A, it provides reliable power. It shows reliable temperature adaptability with controlled temperature coefficients. Moreover, it has strict quality control with a power tolerance of 0~+3% and clear specifications for maximum system voltage and maximum series fuse rating, ensuring compatibility and safe operation.


Technical Specifications

Module Type BWGPM620W(132)

STC NOCT
Maximum Power (Pmax) 41.4 461.9
Maximum Power Voltage (Vmp) 14.98 38.31
Maximum Power Current (lmp) 12.06 12.06
Open-circuit Voltage (Voc) 49.6 45.9
Short-circuit Current (lsc) 15.91 12.81
Module Efficiency STC (%) 22.93%
Operational Temperature(℃) -40~+85°C
MaximumSystemVoltage 1500VDC
Max Series Fuse Rating 30A
Power tolerance 0~+3%
Wind/Snow Load 2400Pa/5400Pa
Temperature coefficients of Voc -0.230%/℃
Temperature coefficients of Isc +0.045%/℃
Temperature Coefcient of Pmax -0.280%/℃
