Product introduction
Product parameters
| DC solar lighting kit | ||
| Product Name | Specification | |
| Solar panel | 10W | |
| Solar controller | 12V3A | |
| Lead-acid battery | 12V7AH | |
| Technical Parameter | ||
| Product Name | Specification | |
| Solar panel | Model No. | TYP10 (poly crystalline) |
| Rated Maximum Power | 10W | |
| Maximum Power Voltage (Vmp) | 18V | |
| Maximum Power Current (Imp) | 0.56A | |
| Open Circuit Voltage(Voc) | 21.24V | |
| Short Circuit Current(Isc) | 0.611A | |
| Maximum System Voltage | 1000V | |
| Operating Temperature | -40ºC~+85ºC | |
| Standard Test Conditions | 1000W/m2, AM1.5, 25ºC | |
| Lead-acid battery | Nominal Capacity | 12V7AH |
| Solar controller | Rated Voltage(V) | 12V |
| Maximum charging current(A) | 3A | |
| Floating charge protection(V) | 14.4V | |
| Equalizing charge protection(V) | 13.8V | |
| Voltage range (V) | 10.8-16.5V | |
| Operating temp. | -40ºC~+60ºC | |
| Accessories | PV cables | 5m |
| Remote control | 1 pc | |
| USB charging wire | 1pc | |
| 3w Led lamp | 4pcs | |
| 5m lamp wire and lamp holder | 4 sets | |
| Manual | 1pc | |

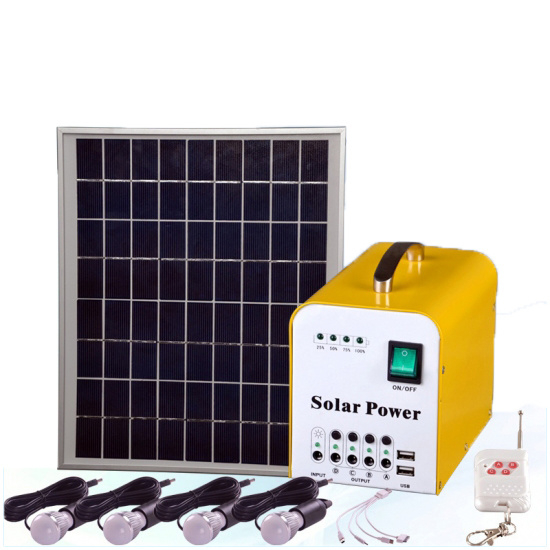

| Model: BWP-0004 | ||
| Product Name | Description | Quantity(pcs) |
| Solar panel | 10W Poly crystalline | 1 |
| Controller | 12V3A | 1 |
| Lead acid battery | 12AH | 1 |
| Led light | 3w | 4 |
| PV cables | 5m | 1 |
| Remote control | 1 | |
| USB charging line | 1 | |
| others | lamp holder and lamp wire | 4 |
| How much electricity the solar system produce? | ||
| Charging mode | solar panel | |
| Charging time | By solar panel about 8.4 hours. | |
| Daily production: | 68w-108w | |
| Working time(full charged) | 3W lamps*2pcs work 14 hours; 3W lamps*4pcs work 7 hours | |
The solar lighting system can supply power for light, 6''fan, mobile phones, MP3 players and other 5V electronic equipments. | ||
| Packing Information | ||
| Volume(m³) | 0.02 cbm/set | |
| G.W.(kg) | 8.1 kg/set | |
| Quantity/20GP | 1300 set | |
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
