Brightway grid-tied home solar system

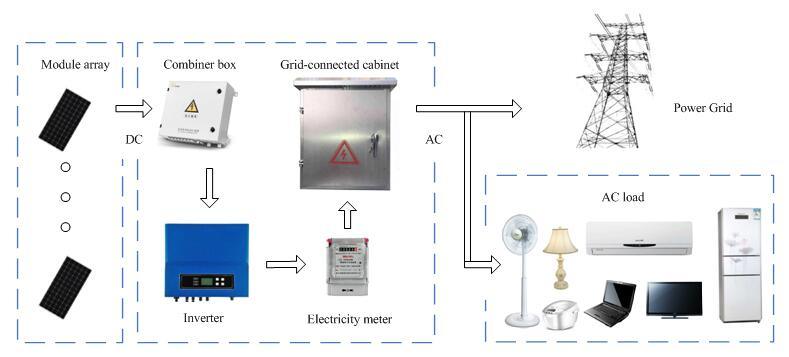

Solar system technical Specifications
| System Basic Information | Solar panel rated output power: 5000W | |
| Suitable for daily power consumption : >20KWH | ||
| Allowable max loads power : 5KW | ||

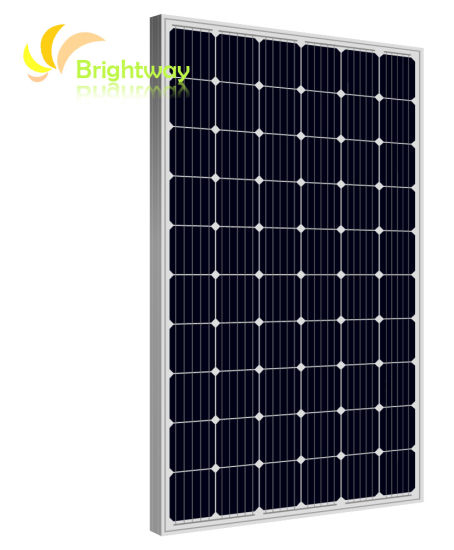

| Solar panel | 250W mono solar panel (poly optional) | QTY:16pcs |
| Vmp:34.4V Voc:43.2V Imp 7.27A | ||
| Size : 1640*992*35mm | ||
| 25 years life time (CE TUV) | ||
| Terminal block:IP65 with MC4 connector | ||
| Efficiency performance :25 years 80 % | ||
| Combiner box | Model:H4T1-48V | QTY:1pcs |
| Multiple PV strings inputs. | ||
| Simplify wiring between PV array and controller. protections to controller | ||
| thunderstorm& surge protection | ||
| Inverter | Power: SC5kW | QTY:1pcs |
| MPP tracking efficiency reached 99.9% | ||
| Pure sine wave AC output. | ||
| Integrated machine design technology, about 30% lighter than similar products | ||
| Grid-connected cabinet | Shell material: stainless steel | QTY:1pcs |
| Protection grade: IP65 | ||
| Rated current: 0-1000A | ||
| Surge proof, overcurrent, short circuit etc. protection | ||
| Cables | 16mm2*35CM battery cable | QTY:1set |
| 16mm2*1M battery cable | ||
| 4mm2 PV cable | ||
| MC4 terminals | ||
FAQ
Q1: What are differences among grid-tied, off grid and hybrid solar power system?
A1: Grid-tied system works based on the national grid. If there is without the national utility, the system can not word.
Off grid system can word without the national grid, but if there is national grid, which can be a back up power for the off grid system
Hybrid system, which combine the function of grid-tied and off grid. All in all, it's a grid-tied system, but can also store the power in the battery.
Q2: How about the leading time?
A2: After receiving deposit, 20-30 days.
Q3: How many years of warranty for the solar system?
A3: For the each of accessories, the warranties are different. Solar panel has 10- years linear output warranty and 25years life span. Contorller, inverter and battery has 5-10years warranty years warranty.bracket has 10 years warranty.
Q4: How to design a suitable solar power system?
A4: Just contact our sales engineer, who will design the full set of solution for you based on your really needs with the most competitive cost.
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
