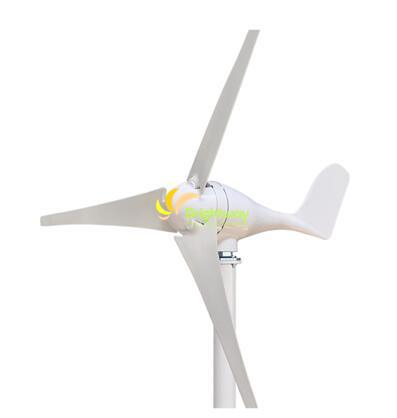

100W 200W 300W 400W Small Wind Turbine Generator

Availability:
Quantity:

Specifications & Configurations
100W 200W 300W 400W Small Wind Turbine Generator
1. Low starting wind speed, small volume, beautiful appearance and low running vibration;
2. Humanized flange installation design is used to facilitate installation and maintenance;
3. The blades of the wind turbine are made of nylon fiber with optimized aerodynamic shape design and mechanism design. The low starting wind speed and high utilization coefficient of wind energy increase annual power generation.
4. The generator adopts patented permanent magnet rotor alternator with special rotor design to effectively reduce the resistance torque of the generator, which is only 1/3 of that of the ordinary motor. At the same time, it makes the wind wheel and generator have better matching characteristics and the unit operation reliability.
5. Adopt the maximum power tracking intelligent microprocessor control to effectively regulate the current and voltage.

Model BWW-100S BWW-200S BWW-300S BWW-400S
Rated power 100W 200W 300W 400W
Max.power 130W 220W 310W 410W
Rated voltage 12/24V 12/24V 12/24V 12/24V
Start wind speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated wind speed 10m/s 11.5m/s 13m/s 13m/s
Safe wind speed 55m/s 55m/s 50m/s 50m/s
Host weight 6.0kg 6.2kg 6.5kg 6.8kg
Rotor diameter 1.2m 1.3m 1.3m 1.4m
Leaf number 3pcs 3/5pcs
Leaf blade material Nylon fiber
Generator type Three-phase ac permanent magnet synchronous generator
Magnetic steel material ndfeb
Generator enclosure materials Die casting aluminum
Control system Electromagnetic/windwheel is off side
Speed control method Adjust the windward Angle automatically
Working temperature -40ºC ~ 80ºC
Lubricating method Add grease

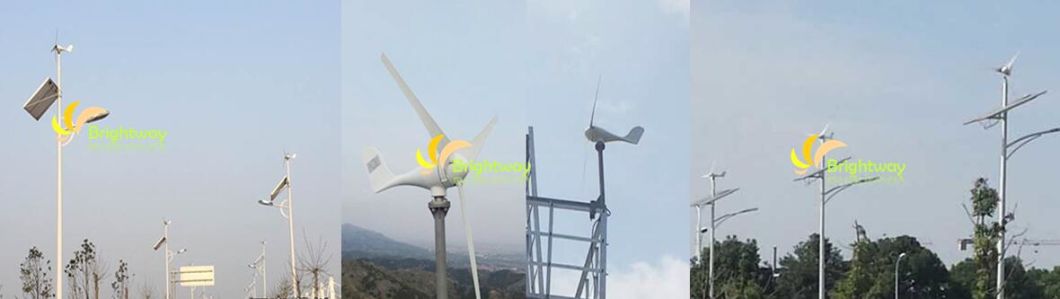

Project Show

100W 200W 300W 400W Small Wind Turbine Generator
