BWSESS60K
Brightway Solar

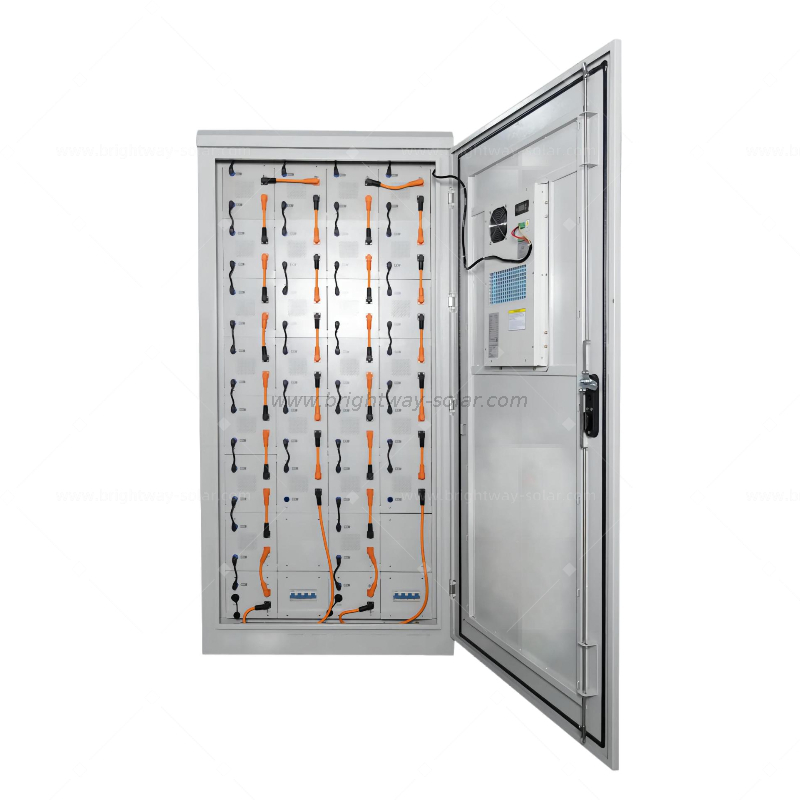

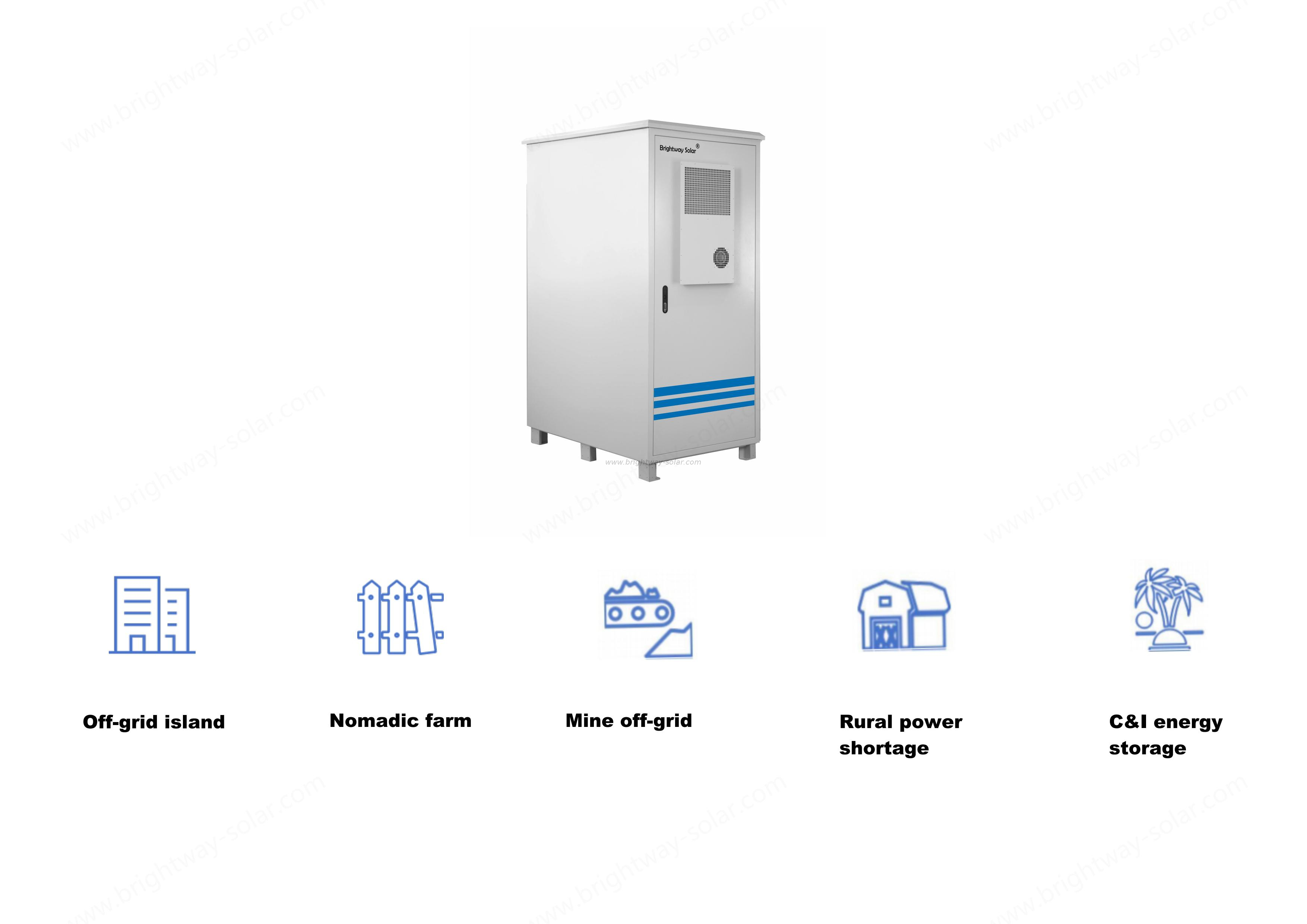

Durable Design: Constructed from high-grade materials, our outdoor cabinet is IP54 rated, ensuring protection from dust and water ingress. This allows for safe and reliable operation in a range of outdoor environments, including harsh weather conditions.
Efficient Performance: Utilizing Lithium Iron Phosphate (LiFePO4) batteries, our energy storage system offers high energy density, long cycle life, and excellent safety performance. This ensures that you can store and discharge energy efficiently, with minimal loss over time.
Easy Integration: Our outdoor cabinet is designed for easy integration with existing energy systems. With standard connectivity options and intuitive control interfaces, you can seamlessly integrate our energy storage system into your existing infrastructure.
Technical Specifications
| Model | BWSESS60K |
| DC Input | |
| Max. power(KW) | 72KW |
| Max. DC votageM | 1000V |
| MPPT vdtage range(M) | 180V-900V/630V |
| MPPT operaing vallage range at raled power | 450V-900V |
| MPPT tracker/stings | 2/2/2/2 |
| Max.input current of single MPPT(A) | 36A*4 |
| Shor-circuit current of PV input(A) | 42A/42A/42A/42A |
| AC Output | |
| Rated output power(KW) | 60KW |
| Max. apparent AC power(KVA) | 60KV4 |
| Max. output current(A) | 87A |
| Grid voltage/range(V) | 400V,3L+N+PE |
| Frequengy (Hz) | 5060Hz |
| PF | 1(0.8lagging-O.&leading) |
| THDI | 3% |
| Battery | |
| Battery capacity(KWH) | 53KWH-173KWH |
| Battery type | UiFePO4 battery |
| Battery Modue | 51.2V 130AH BYD blade battery modue |
| Number of batlery racks | 1-2 |
| Battery vatage range(M) | 220V~800V |
| Max. input/output vatage(M | 800V |
| Rated charge/discharge current(A) | 100A |
| Max, input/output power(KW) | 60KW |
| EPS Output | |
| Rated output power(KW) | 60KW |
| Max.Apparent AC power(KVA) | 60KVA |
| Max. singke-phase apparent output power | 20KVA |
| Rated output voltage(V) | 400V,3L+N+PE |
| Rated output current(A) | 87A |
| Rated frequency (Hz) | 50Hz/60Hz |
| Automa ic swiching time (ms) | <10ms |
| THDU | <3% |
| Overload capacity | 110%,30S/120%,10S/150%,0.02S |
| Protection Parameters | |
| AC over current protecson | Yes |
| Ground faut detection protecion | Yes |
| Power grid morioning prolection | Yes |
| Residual current detection protedion | Yes |
| General Data | |
| Euro Effikieny | >98.2% |
| Noise Emission (Typical) | <45dB |
| Operation Temperature | -25~+60℃ |
| Relative Humicity | 5~90%(non-condensing) |
| AHiude | 4000m(>2.000 Derating) |
| Dimensions (W/D/H) mm | 1000*1650*2050 |
| Weight(kg) | Customizason |
| Inverier Topology | transformerless |
| Self-Consumpion | <3W |
| Ingress protection | IP54 |
| Fire extinguishing system | Opional |
| Operating temperature | -30℃~55℃ |
| PCS cooing way | Intehigent Fan |
| Battlery codling way | Air condioning cocing |
| Display and Communication | |
| Display | LCD |
| Interface RS485/WFVGPRS | yes /optiopt |
