PERC
Brightway Solar

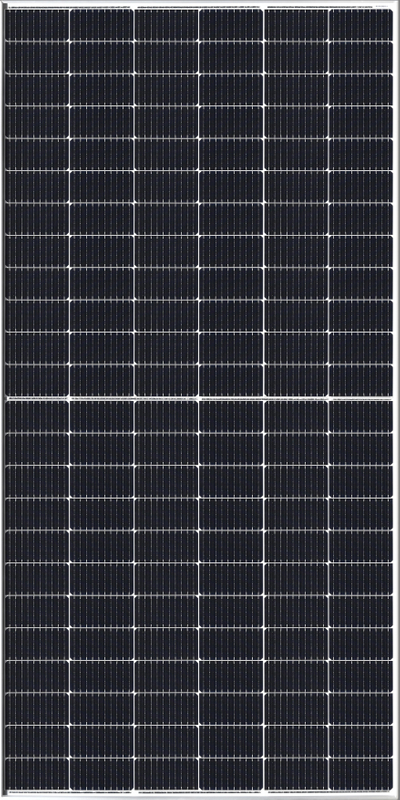

BWGP-540W(144), BWGP-545W(144), BWGP-550W(144), and BWGP-555W(144). Featuring up to 21.48% efficiency, these modules deliver max power from 540Wp to 555Wp. With a wide operating temp range (-40℃ to +85℃) and high system voltage compatibility, they are suitable for various solar applications. Reliable, efficient, and long-lasting, these modules are your ideal choice for renewable energy solutions.
Technical Specifications
| Module Type | BWGP-540W(144） | BWGP-545W(144) | BWGP-550W(144) | BWGP-555W(144) | ||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 540Wp | 402Wp | 545Wp | 405Wp | 550Wp | 409Wp | 555Wp | 413Wp |
| Maximum Power Voltage (Vmp) | 40.70V | 38.08V | 40.80V | 38.25V | 40.90V | 38.42V | 40.99V | 38.59V |
| Maximum Power Current (lmp) | 13.27A | 10.55A | 13.36A | 10.60A | 13.45A | 10.65A | 13.54A | 10.70A |
| Open-circuit Voltage (Voc) | 49.42V | 46.65V | 49.52V | 46.74V | 49.62V | 46.84V | 49.72V | 46.93V |
| Short-circuit Current (lsc) | 13.85A | 11.19A | 13.94A | 11.26A | 14.03A | 11.33A | 14.12A | 11.40A |
| Module Efficiency STC (%) | 20.90% | 21.10% | 21.29% | 21.48% | ||||
| Operating Temperature(℃) | -40℃~+85℃ | |||||||
| Maximum system voltage | 1000/1500VDC(IEC) | |||||||
| Maximum series fuse rating | 25A | |||||||
| Power tolerance | 0~+3% | |||||||
| Temperature coefficients of Pmax | 0.35%/℃ | |||||||
| Temperature coefficients of Voc | -0.28%/℃ | |||||||
| Temperature coefficients of Isc | 0.048%/℃ | |||||||
| Nominal operating cell temperature(NOCT) | 45±2℃ | |||||||
