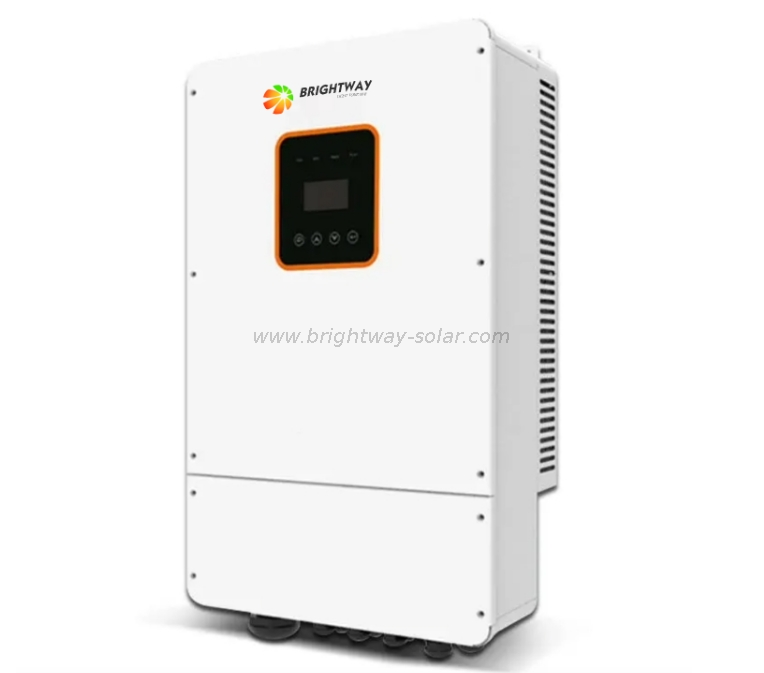

BWR5KLNA
Brightway
Driven by the low-carbon concept and buoyed by the competitive edge of energy storage technology, the commercial application of Photovoltaic plus Energy Storage System (PV+ESS) is set to be progressively realized in developed regions. Brightway's residential hybrid system solutions are engineered to swiftly execute Energy Management System (EMS) dispatching commands. These solutions synergize seamlessly with rooftop PV installations, crafting an intelligent and user-friendly power supply system that enhances electrical safety. The Brightway system is meticulously designed to operate in harmony with the power grid, ensuring users enjoy an uninterrupted power supply at all times.
| Model | BWR5KLNA | BWR6KLNA | BWR8KLNA | BWR10KLNA |
| PV input | ||||
| Max. power(kW) | 7.5kw | 9kw | 12kw | 13kw |
| MPPT voltage range(V) | 120 - 500V | |||
| Max. DC voltage (V) | 500V | |||
| Max.Input current of single MPPT(A) | 12A | |||
| MPPT tracker/strings | 4/2 | |||
| AC output | ||||
| Rated output power(kVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Max. output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| Ac output voltage(V) | 120/240(split phase), 208(2/3 phase),230 (single phase) | |||
| Frequency (Hz) | 50/60Hz | |||
| Power factor | 0.8leading…0.8lagging | |||
| THDI | < 3% | |||
| AC output topology | Split phase, 2/3 phase, single phase | |||
| Battery | ||||
| Battery voltage range(V) | 40V~58V | |||
| Max. charging voltage(V) | 58V | |||
| Max. charge/discharge current(A) | 120A/120A | 135A/135A | 190A/190A | 210A/210A |
| Battery type | Lithium/Lead-acid | |||
| Communication | CAN,RS485 | |||
| EPS output | ||||
| Rated power(kVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Rated output voltage(V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||
| Rated output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| Rated frequency(Hz) | 50/60Hz | |||
| Automatic switching time(ms) | ＜20ms | |||
| Output THDu | < 2% | |||
| Overload capacity | 125%,60S/150%,1S | |||
| General data | ||||
| Max efficiency | ≥98.2% | |||
| North american efficiency | ≥97.2% | |||
| Ingress protection | IP65/NEMA 3R | |||
| Noise emission(dB) | <25dB | <29dB | <29dB | <29dB |
| Cooling | Natural | |||
| Operation temperature | .-25℃ ~ 60℃ | |||
| Relative humidity | 0-95%（non-condensing） | |||
| Altitude | 2,000m(>2,000 Derating) | |||
| Weight(kg) | 41kg | |||
| Dimensions W *D *H (mm) | 430*220*710MM | |||
| Isolation transformer | No | |||
| Self-consumption(W) | <3w | |||
| Display and communication | ||||
| Display | LCD, touch screen | |||
| Interface:RS485/Wifi/4G/ CAN/DRM | Yes | |||
| Safety standard | UL1741SA all options, UL1699B, CSA 22.2 | |||
| EMC | FCC Part 15, Class B | |||
| On-grid | IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III,NRS | |||
