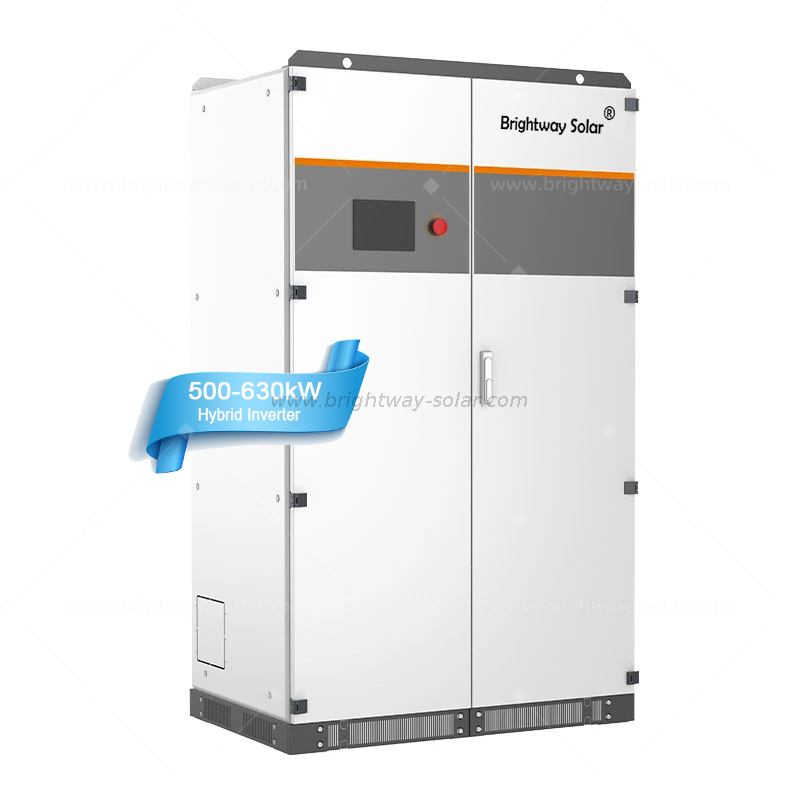

BWS-630K-CP
Brightway Solar
The PCS (Power Conversion System) inverter stands as a cornerstone in the realm of energy storage systems (ESS), irreplaceable in its function to optimize the availability, value, and overall performance of energy storage systems, regardless of their scale. Our range of PCS inverters, spanning from the 500K to 630K series, have been precisely engineered to cater to grid-level applications, boasting features such as multi-machine parallel connectivity, the capability to initiate grid operations from a blackout state, SVG functionality, compatibility with the IEC61850 communication protocol, and an adaptive nature that enables them to accommodate diverse scenarios within power generation, transmission, distribution, and consumption. These inverters are not just components; they are the heartbeat of any comprehensive and efficient energy storage solution.
Technical Specifications
| Model | BWS-630K-CP |
| DC(battery) | |
| Voltage range(V) | 600V-900V |
| Max. current (A) | 1179A |
| AC(on-grid) | |
| Max output power(kVA) | 693kVA |
| Rate output power(kW) | 630KW |
| Rated voltage(V) | 400V |
| Voltage range(V) | 320V-460V |
| Rated current(A) | 909A |
| Max. output current (A) | 1000A |
| Rated frequency (Hz) | 50/60Hz |
| Frequency range(Hz) | 45-55/55-65Hz |
| THDI | <3% |
| Power factor | 1lagging-1leading（Settable） |
| AC connection | 3W+PE |
| AC(off grid) | |
| Rated voltage(V) | 400V |
| THDu | ＜1% Linear ＜5% Nonlinear |
| Rated frequency(Hz) | 50/60Hz |
| Overload capacity | 110% ～long-term |
| General data | |
| Max.efficiency | 98.70% |
| Ingress protection | IP21 |
| Noise emission(dB) | <70dB |
| Operating temperature | －30～+55℃ |
| Cooling | Forced air |
| Relative humidity | 0 ~95% non-condensing |
| Altitude | 5000m(>3000 Derating ) |
| Dimension W*D*H (mm) | 1200×800×2050mm |
| Weight(kg) | 950kg |
| Transformer | No |
| Self-consumption(W) | <10W |
| Display and communication | |
| Display | touch LCD display |
| BMS communication | RS485/CAN |
| EMS communication | RS485，TCP/IP |
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC |
