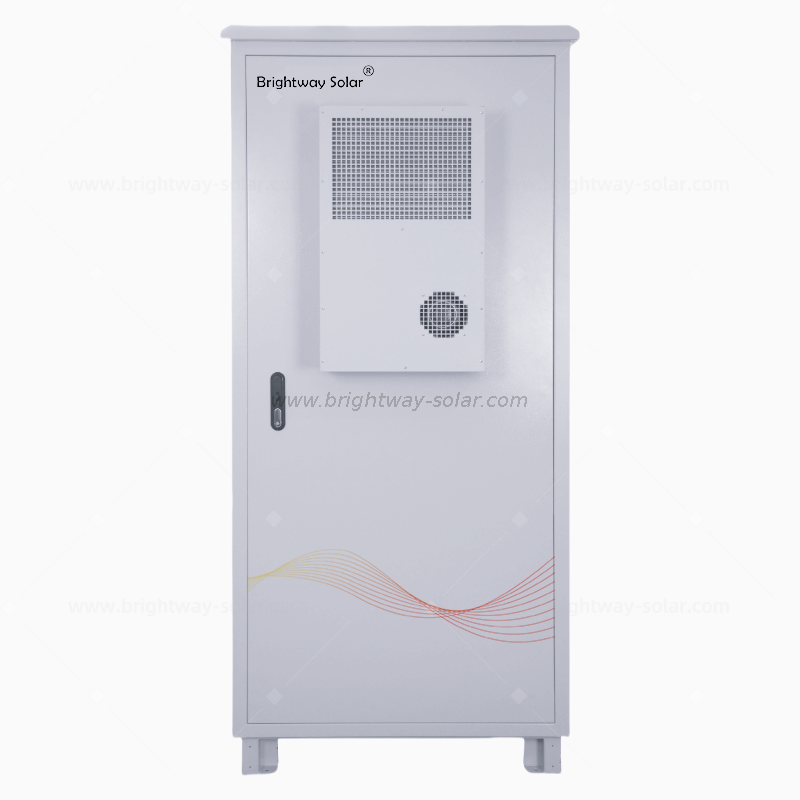

BWS106BL-LFP
Brightway Solar
The BYD vehicle battery cell, utilizing Lithium Iron Phosphate (LFP) technology, offers exceptional safety, durability, and energy efficiency. Equipped with BYD's original Battery Management System (BMS) for robust protection, it ensures stable and reliable performance. Additionally, it boasts a built-in fire suppression system, temperature regulation, and warning functions to provide multiple layers of safety. The battery also incorporates various protection mechanisms, including low voltage, over voltage, overcharging, and over discharge safeguards, further enhancing its safety credentials. Backed by a 5-year warranty and designed for a lifespan of over 10 years (6000 cycles), this BYD battery cell is a dependable choice for electric vehicles.
Technical Specifications
| Model | BWS106BL-LFP |
| Performance | |
| Battery type | Lithium-iron phosphate (LiFePO4) |
| Nominal battery energy(KWH) | 106.496KWH |
| Nominal capacity(AH) | 130AH |
| Nominal voltage(V) | 409.6 |
| Operating voltage Range(V) | 345.5V～473.6V |
| Moudules number | 16 |
| Standard charging current(A) | 60A @ 25°C |
| Max. constant charging current(A) | 200A @ 25°C |
| Standard discharging current(A) | 60A @ 25°C |
| Max. constant discharging current(A) | 200A @ 25°C |
| Cell technology | BYD Blade Lithium-iron phosphate (LiFePO4) |
| Depth of discharge(DOD) | 80% |
| Design life | ＞5000 times @80%DOD |
| Warranty | 5 years |
| Warranty Document Supplied | Yes |
| Compatible hybrid inverters | 30/50KW/100KW C&I Energy storage inverters |
| Protection function | |
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function |
| Communication | |
| Communication | CAN/RS485 |
| General Specification | |
| Dimension (L*W*H)(MM) | 1650*1000*2050 |
| Weight(KG) | Customization |
| Cabinet color | White |
| Fire extinguishing system | support |
| Air conditioner system | support |
| Working temperature range | -30℃~+55℃ |
| Shipping state voltage(V) | 3.20~3.30V/CELL |
| state of charge SOC | 20%~30% |
| Charging temperature | 0~+55℃(32°F-131°F) |
| Discharging temperature | -30~+60℃ (-22°F-140°F) |
| Short term storage ambient temperature | -20~+35℃(<3 months, SOC: 20%~60%) |
| Long term storage ambient temperature | -20 ~+30℃(<1 year, SOC: 30%~60%) |
| Max. operating altitude | 4,000m(Derating above 2,000m) |
| Protection degree | IP54 |
| Relative humidity | 5%-95% |
| Battery cooling way | Air conditioning cooling |
| Noise emission | <29 dB |
| Certification | TUV/CE/IEC/UN38.3/UL1973 |
