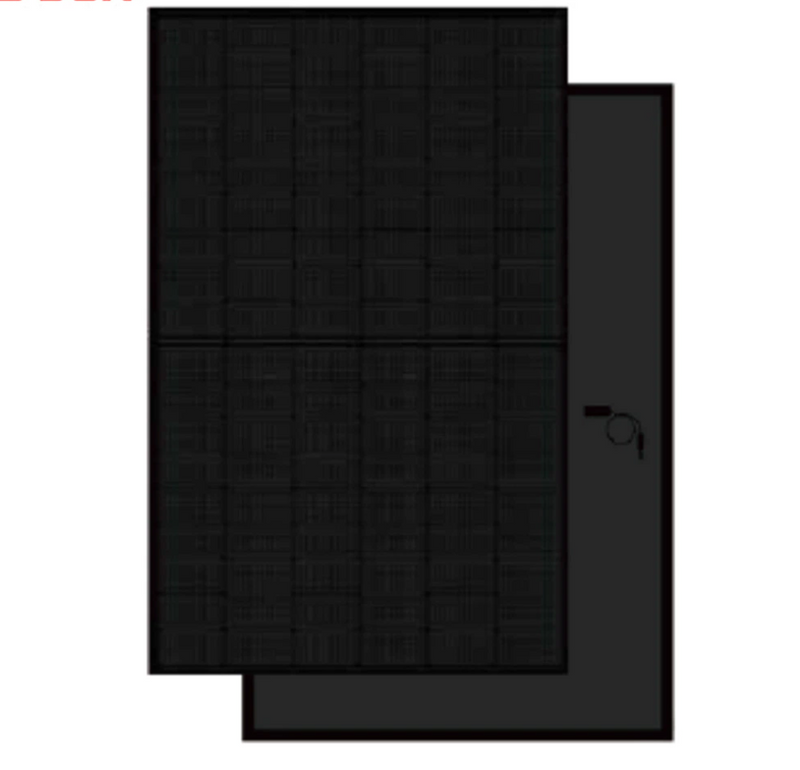

Brightway Solar 108cells 430W All Black Solar Module for Commercial Installations

Experience the pinnacle of solar efficiency with the BWGPT430W module. Boasting a maximum power output of 430Wp under standard test conditions (STC), it delivers unparalleled performance. Engineered for reliability, the BWGPT430W features a maximum power voltage (Vmp) of 31.61V and maximum power current (Imp) of 13.60A, ensuring smooth and efficient energy conversion. With an open-circuit voltage (Voc) of 37.67V and short-circuit current (Isc) of 14.34A, this module is designed for superior performance in a wide range of conditions. The 21.51% module efficiency under STC sets it apart as a top performer in the market.
Availability:
Quantity:
  • BWGPT430W(108)

  • Brightway Solar

WechatIMG55

Function Characteristics

Revolutionize your renewable energy setup with the compact yet powerful BWGPT430W solar panel. Capable of producing up to 430Wp of clean, renewable energy, this panel is a game-changer for residential and commercial applications. Featuring a maximum power voltage (Vmp) of 31.61V and a maximum power current (Imp) of 13.60A, it ensures efficient power generation. The open-circuit voltage (Voc) of 37.67V and short-circuit current (Isc) of 14.34A further solidify its position as a top-tier product. With a remarkable 21.51% module efficiency under STC, the BWGPT430W is the perfect addition to any eco-friendly energy system.




Technical Specifications

Module Type BWGPT430W(108)

STC NOCT
Maximum Power (Pmax) 430Wp 320.4Wp
Maximum Power Voltage (Vmp) 31.61V 29.25V
Maximum Power Current (lmp) 13.60A 10.95A
Open-circuit Voltage (Voc) 37.67V 35.31V
Short-circuit Current (lsc) 14.34A 10.95A
Module Efficiency STC (%) 21.51%
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1500V DC
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.29%/C
Temperature coefficients of Voc -0.25%/°C
Temperature coefficients of Isc 0.045%/°C
Nominal operating cell temperature(NOCT) 45±2℃
