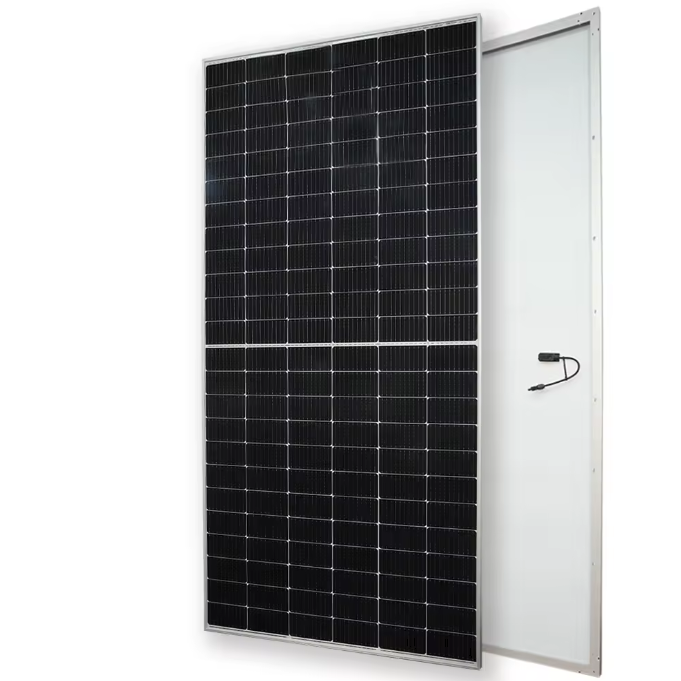

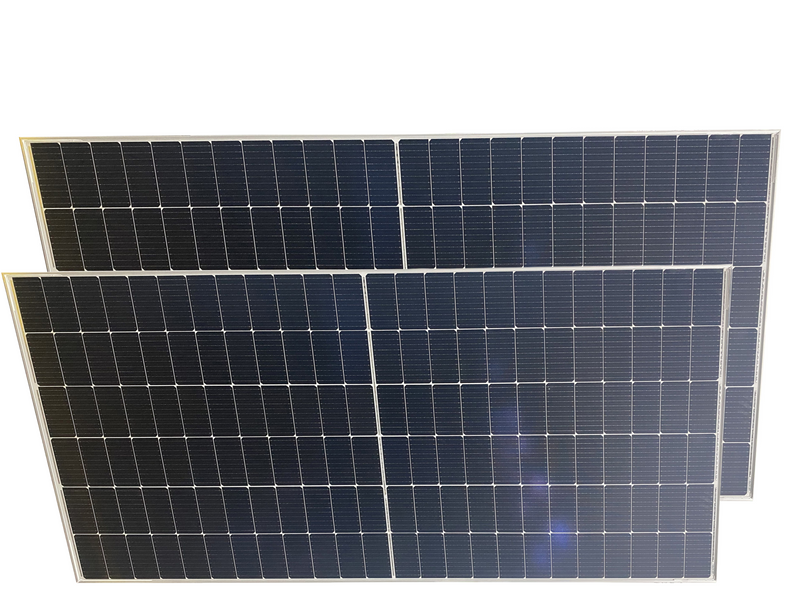

BWGP-550W(144)
Brightway Solar
The Brightway Solar Module features an outstanding Module Type of BWGP-550W(144). It offers remarkable Maximum Power of 550Wp at STC and 409Wp at NOCT. The Maximum Power Voltage is 40.90V and 38.42V, with corresponding Maximum Power Currents of 13.45A and 10.65A. It has an Open-circuit Voltage of 49.62V and 46.84V, and a Short-circuit Current of 14.03A and 11.33A. The Module Efficiency STC (%) reaches 21.29%. It operates within a specific Operating Temperature range. Additionally, it has specific Maximum System Voltage, Maximum Series Fuse Rating, Power Tolerance, and Temperature Coefficients for Pmax, Voc, and Isc. The Nominal Operating Cell Temperature (NOCT) is also defined, ensuring optimal performance.
Technical Specifications
| Module Type | BWGP-550W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 550Wp | 409Wp |
| Maximum Power Voltage (Vmp) | 40.90V | 38.42V |
| Maximum Power Current (lmp) | 13.45A | 10.65A |
| Open-circuit Voltage (Voc) | 49.62V | 46.84V |
| Short-circuit Current (lsc) | 14.03A | 11.33A |
| Module Efficiency STC (%) | 21.29% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1000/1500VDC(IEC) | |
| Maximum series fuse rating | 25A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | 0.35%/℃ | |
| Temperature coefficients of Voc | -0.28%/℃ | |
| Temperature coefficients of Isc | 0.048%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
