BWSH-H1000
Brightway
Function Characteristics
1.High-quality aluminum alloy blades, with surface treated by spraying or oxidation, have good corrosion resistance;
2.High-quality aluminum alloy blades, with surface treated by spraying or oxidation, have good corrosion resistance;
3.The close fit design between the wheel groove and the blade makes the fit between the blade and the wheel more consistent;
4.Due to the close fit design of the wind turbine, the three blades are accurately distributed at 120 degrees, making the rotation of the wind turbine smoother;
5.The use of stainless steel material makes the product durable;
6.The wind turbine is flanged for connection, which is safer and more reliable.
Technical specifications and parameters
| Model | BWSH-H600 | BWSH-H1000 | BWSH-H2000 | BWSH-H3000 |
| Rated power | 600W | 1000W | 2000W | 3000W |
| Blade quantity | 3/piece | 3/piece | 3/piece | 3/piece |
| Impeller height | 1.6M | 2m | 2.8m | 3.6m |
| Diameter of wind wheel | 1.6M | 1.6m | 2m | 2m |
| Net Weight | 72KG | 92KG | 142KG | 165KG |
| Package Weight | 90kg | 110KG | 167KG | 200KG |
| Package size (mm) |
|
|
|
|
| Packing | wooden box | |||
| Nominal voltage | 24/48v | 48v/96v/120vacz/customized | ||

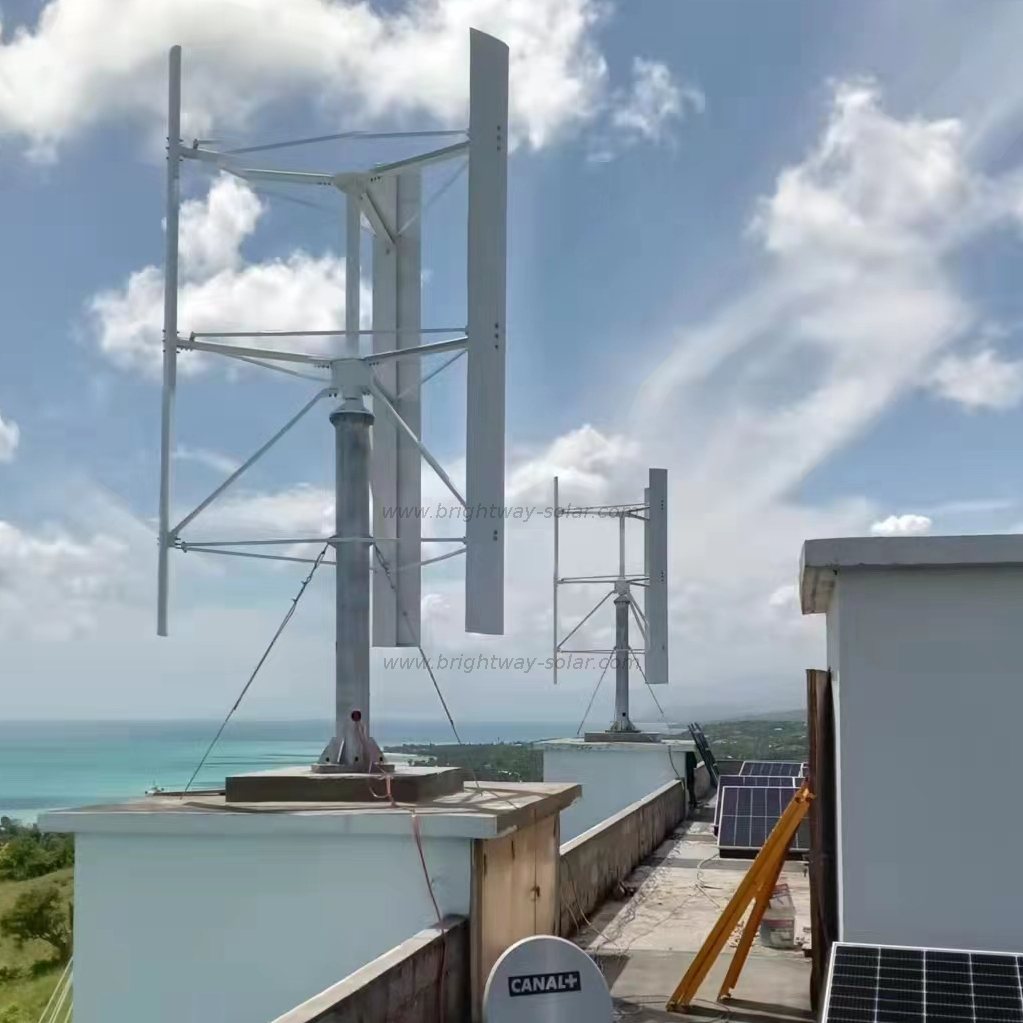

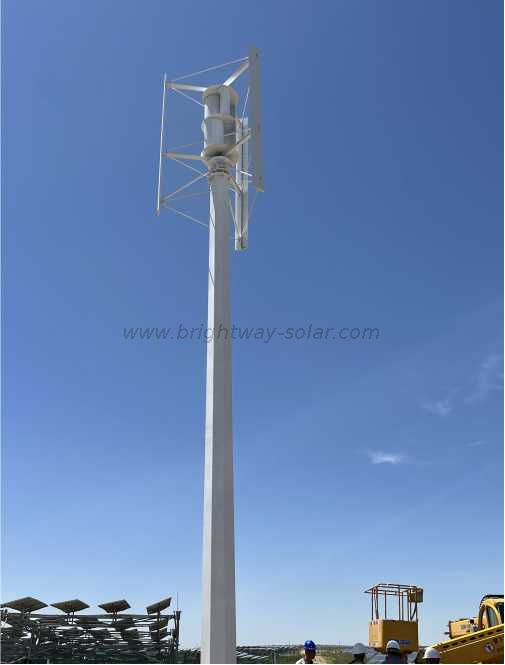

| Form | Vertical axis wind turbine | |||
| Start-up wind speed | 2.3m/s | |||
| Rated wind speed | 11m/s | |||
| Extreme wind | 45m/s | |||
| Braking system | Electromagnetic brake / mechanical brake (customized) | |||
| Hydraulic brake | Active brake, electric brake | |||
| Controller unit | PLC | |||
| Interface | HMI | |||
| Alternator type | Three phase Coreless Permanent Magnet Synchronous Generator | |||
| Insulation class | H | |||
| Blade material | aluminum alloy | |||
| Design level | IEC Class Ⅲ | |||
| Tower type | Independent pole | |||
| Authentication | CE；IOS | |||
| Noise level | <35dBA | |||
| Temperature | ‐20°C~50°C | |||
| Altitude | 2000m /following | |||
| Degree of protection | IP54 | |||
| Design life | 20 Years | |||
