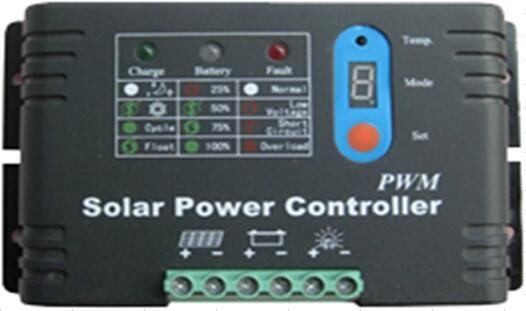

36V/48V/30A Solar PWM Controller for Solar Power System

Quantity:



Inquire Add to Basket

Model NO.:
BWC-P30A-36V/48V
Origin:
Yangzhou
HS Code:
8543709990
Port:
Yangzhou, China
Production Capacity:
10000PCS/Year
Payment Terms:
L/C, T/T, Western Union, Money Gram

Product Description

Advantages

The intelligent control is realized by using single chip microcomputer and special software.

Accurate discharge control using battery discharge rate correction. Discharge terminal voltage is the control point corrected by discharge rate curve, which eliminates the inaccuracy of single voltage control over discharge and conforms to the inherent characteristics of the battery, that is, different discharge rates have different terminal voltage.

Full automatic control with overcharge, overdischarge, electronic short circuit, overload protection, and unique anti-reverse protection; Above protection does not damage any parts, does not burn insurance;

The serial PWM charging main circuit is adopted to reduce the voltage loss of the charging circuit by nearly half compared with the charging circuit using diode, and the charging efficiency is higher than that of non-pwm by 3% to 6%, which increases the power consumption time. Lifting charge after overdischarge recovery, normal direct charge and automatic control of floating charge make the system with longer service life; It also has high precision temperature compensation.

Direct LED light emitting tube indicates the current battery status to let users know the usage status;

All controls are made of industrial-grade chips (only with I industrial-grade controllers) and can operate freely in cold, hot and humid environments. The crystal timing control is also used and the timing control is accurate.

The setting point of potentiometer adjustment control is cancelled, and the working control points are recorded by E square memory, so that the setting is digitized, and the factors of accuracy and reliability are eliminated because of the deviation of vibration and temperature drift of potentiometer.

With digital LED display and setting, all Settings can be completed by one-click operation, which is extremely convenient and intuitive to use.

Fully sealed waterproof type (-s) has complete waterproof and moisture-proof performance.

Technical indicators

model	36V30A	48V30A
The system current	30A
No-load loss	<10mA
Solar input voltage	<70V	<100V
System voltage	36V	48V
Overload, short circuit protection	Short circuit protection of rated current greater than or equal to 3 times
Overload, short circuit protection	Time delay of 1.5 times rated current is closed for 5 minutes and restored automatically after 5 minutes
Charging loop pressure drop	≤0.2V
Discharge circuit pressure drop	≤0.1V
The overpressure protection	48V±1.5%	66V±1.5%
The overpressure to restore	45V±1.5%	60V±1.5%
Discharge voltage	32.4V±1.5%	43.2V±1.5%
Discharge recovery	36.0V±1.5%	52.0V±1.5%
Improve charging	43.8V ±1.5%	57.6V ±1.5%
Improve charging	The charge time is 60 minutes
Equalizing charge	43.7V±1.5%;	59.2V±1.5%;
Equalizing charge	The charge time is 60 minutes
Floating charge	39.8V±1.5%	55.2V±1.5%
Charging return voltage	39.9V±1.5%	52.8V±1.5%
Daytime identification voltage	21V±1.5%	28V±1.5%
Night identification voltage	9V±1.5%	12V±1.5%
Working temperature	-35ºC~55ºC
Protection grade	IP30
Shape size and weight	141.5mm84mm23.6mm 0.35kg
