| Quantity: | |
|---|---|

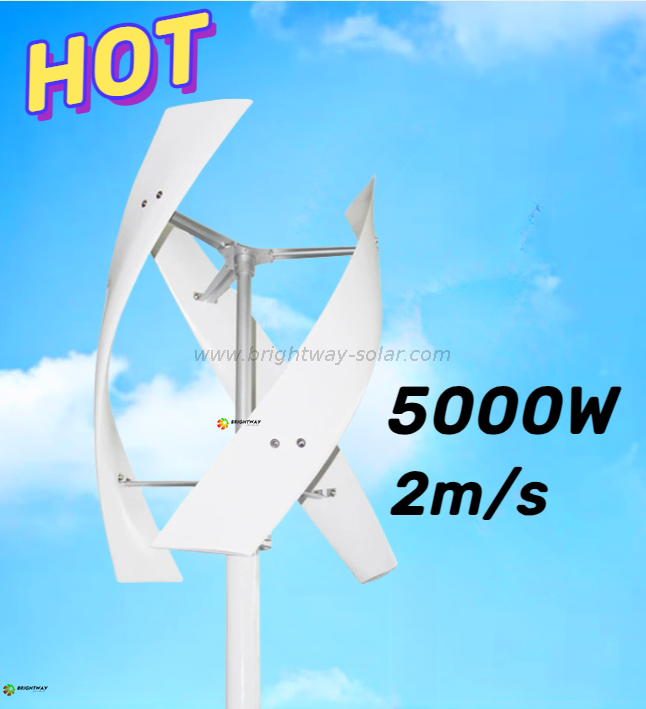

BWSH-XQ5000
Brightway
Advantages of wind energy
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
Technical specifications and parameters
| Model | BWSH-XQ5000 |
| Rated power | 5kW |
| Nominal voltage | 220v/380vac /customized |
| Blade quantity | 3piece |
| Diameter of wind wheel | 2.4m |
| Impeller height | 3.6m |
| Electronic unloading | 10kW Brake resistance box |
| Rated speed | 200RPM |
| Package size (mm) | 4150*740*540；300KG 1030*1030*425； 80kg |
| Start-up wind speed | 2.3m/s |
| Rated wind speed | 10m/s |
| Extreme wind | 45m/s |
| Wind turbine type | Vertical axis wind turbine |
| braking system | Electromagnetic brake / mechanical brake (customized) |
| Hydraulic brake | Active brake, electric brake |
| Controller unit | PLC |
| Interface | HMI |
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator |
| Insulation class | H |
| Blade material | Fiberglass |
| Design level | IEC Class Ⅲ |
| Tower type | Independent pole |
| authentication | CE；IOS |
| Noise | 35FB |
| Noise level | <35dBA |
| Temperature | ‐20°C~50°C |
| Altitude | ≤2000m |
| Degree of protection | IP54 |
| Design life | 20 years |
