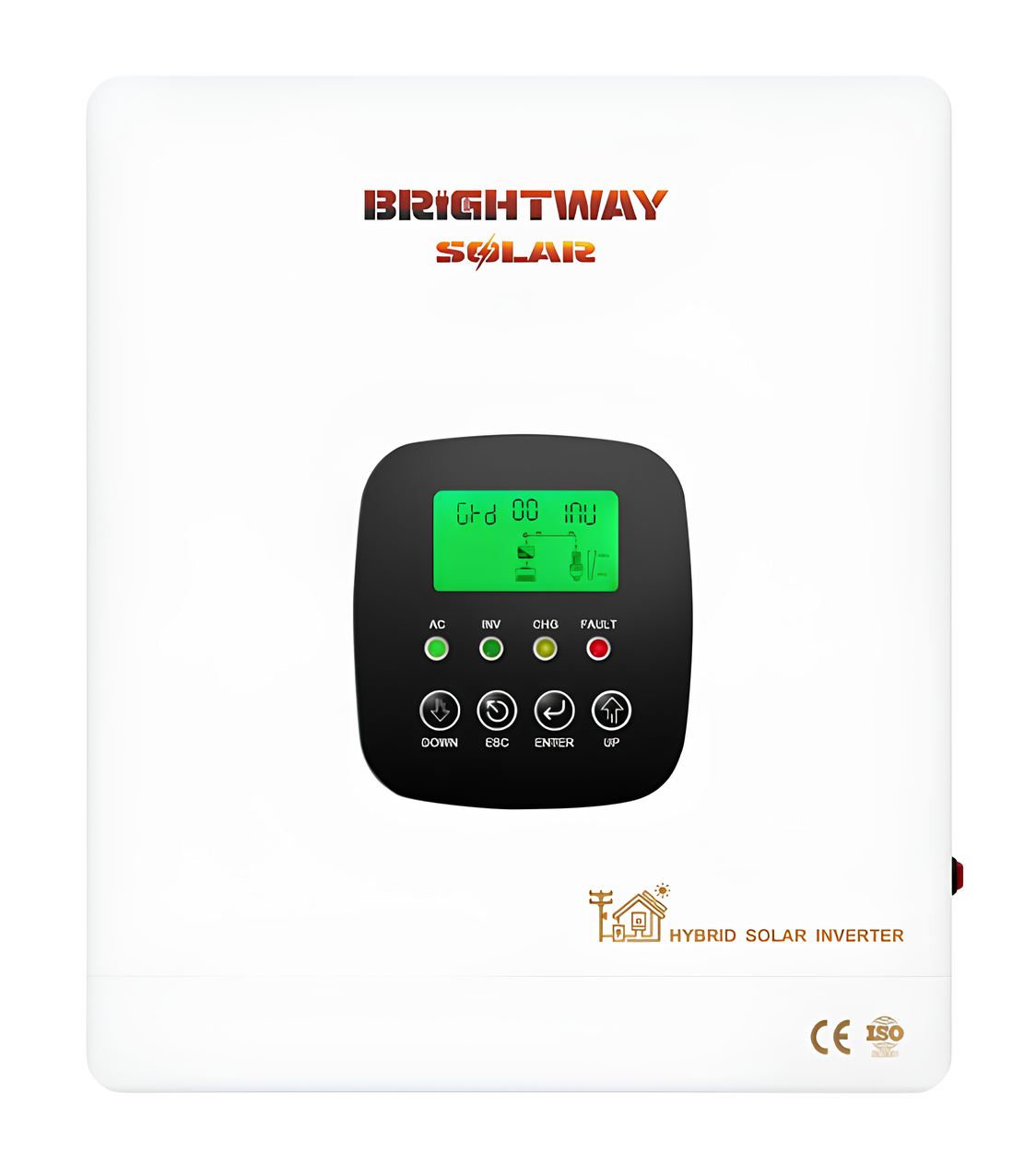

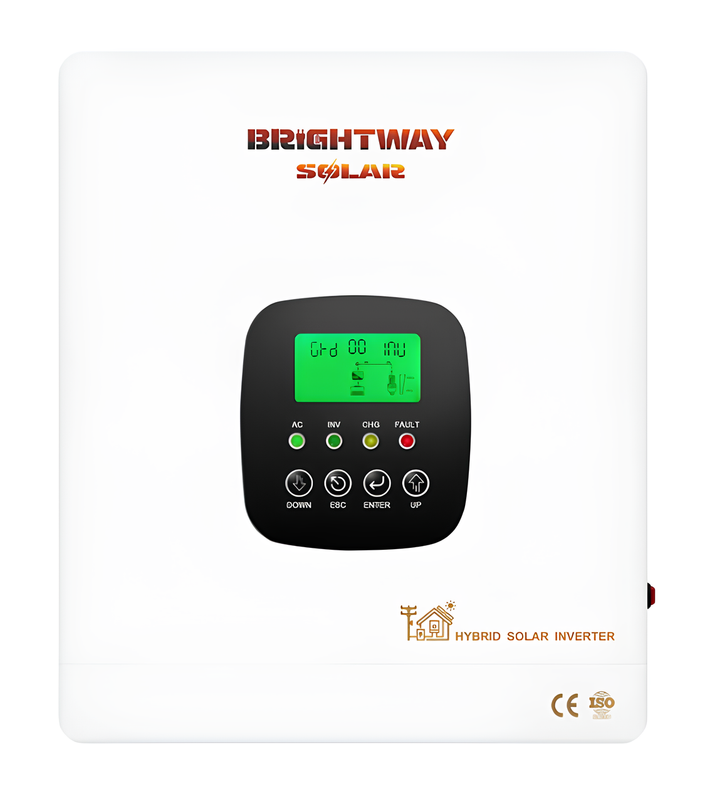

BWHFP83248
Brightway Solar
High frequency architecture enables superior efficiency and a compact form factor, optimizing space utilization without compromising performance.
Bidirectional power flow capability allows seamless energy management, supporting both charging from and discharging to the grid/PV source for maximum flexibility.
Generates clean, pure sine wave output to ensure compatibility with sensitive appliances and equipment, guaranteeing stable, reliable operation.
Advanced Maximum Power Point Tracking (MPPT) with an ultra-wide operating range maximizes energy harvest from PV arrays under varying conditions.
Technical Specifications
| Model:BWHFP | 83248 | |
| PV | Max PV Input Power | 4500W*2 |
| MPPT Tracking Voltage Rang | 80VDC-450VDC | |
| Rated Voltage | 360VDC | |
| Max PV Input Voltage voc (at the lowest temperature) | 500VDC | |
| Max PV Input Current | 18A*2 | |
| MPPT Tracking Channels lnput Routed) | 2 Routed | |
| Battery& Charging | Battery Type | Lead-acid Battery/Lithium Battery |
| Qustom Battery(Charging and disdharging paramcters of different ype of batteriean be set through the operation board) | ||
| Rated Bottery Voltage | 48VDC | |
| Bottery voltage Range | 42-60VDC（default） | |
| Max PV Charging Curront | 150A | |
| Max AC Charging Curent | 100A | |
| Max Charging Curent | 150A | |
| On-Grid Operation | ||
| On-Grid Output (AC) | Rated Output Power | 8300W |
| Rated Output Voltage | 220VAC/230VAC/240VAC | |
| Grid Voltage Range | 187VAC~264VAC | |
| Rated Output Frequency | 50Hz/60Hz | |
| Frequency Range | 47Hz-52Hz(50Hz),57Hz-62Hz(60Hz) | |
| Rated Output Curent | 37.7A/36.1A/34.6A | |
| Power Factor | >0.98(Rated Power) | |
| Off-Grid Operation | ||
| AC Input | Rated Input voltage | 220V/230V/240V |
| Moins input voltage range | 165VAC-280VAC/120VAC-280VAC(Can be set） | |
| Rated Input Frequency | 50Hz/60Hz | |
| Input Frequency Range | 45Hz-55Hz(50Hz)，55Hz-65Hz(60Hz) | |
| AC Output | Rated Output Power | 8300W |
| Rated Output Voltage | 220V/230V/240V | |
| Output Voltage Accuracy | ±2% | |
| Rated Input Frequency | 50Hz/60Hz | |
| Output Frequency Accuracy | ±1% | |
| Output Wave | Pure Sine Wave | |
| Hybrid Operation(Complementary Modoe) | ||
| AC Input | Rated Input voltage | 220V/230V/240V |
| Mains input voltage range | 187VAC-264VAC | |
| Rated Input Frequency | 50Hz/60Hz | |
| lnput Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |
| AC Output | Rated Output Power | 8300W |
| Rated Voltage Rated | 220VAC/230VAC/240VAC | |
| Output Current | 37.7A/36.1A/34.6A | |
| Regular Parameters | ||
| Maximum Conversion Efficiency （Battery Discharge) | 94%(peak value) | |
| MPPT Tracking Efficiency | ≥99.9 | |
| Transfer Time | 10ms(Typical value) | |
| Display | LCD+LED | |
| Cooling Method | Cooling fan in intelligent control | |
| Communication | RS485/Mobile APP（WIFI Monitoring or GPRS monitoring)(Optional) | |
| Protecion Degree | IP20 | |
| Installation | Wall-Mounted | |
| Protection Degree | Battery low voltage alarm | 44VDC(default value) |
| Battery low voltage protection | 42VDC(default value) | |
| Anti-islanding protection | ≤2S | |
| overload power protection | Automatic Protecion (battery mode),Circuit Breaker or Insuranc (AC mode) | |
| Inverter output short circuit | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |
| Temperature protecion | >90℃(Turn off inverter and charging) | |
| Environment | Operating temperature | -10℃-50℃ |
| Storage temperature | -15℃-60℃ | |
| Nois | ≤55dB | |
| Elevation | 2000m(More than derating) | |
| Humidity | 0%～95%,No condensation | |
| Dimension and Weight | ||
| Product Size(L*W*Hmm) | 515*365*117 | |
| Package Size(L*W*Hmm) | 600*430*192 | |
| N.W. (kg) | 13 | |
| G.W. (kg) | 15 | |
