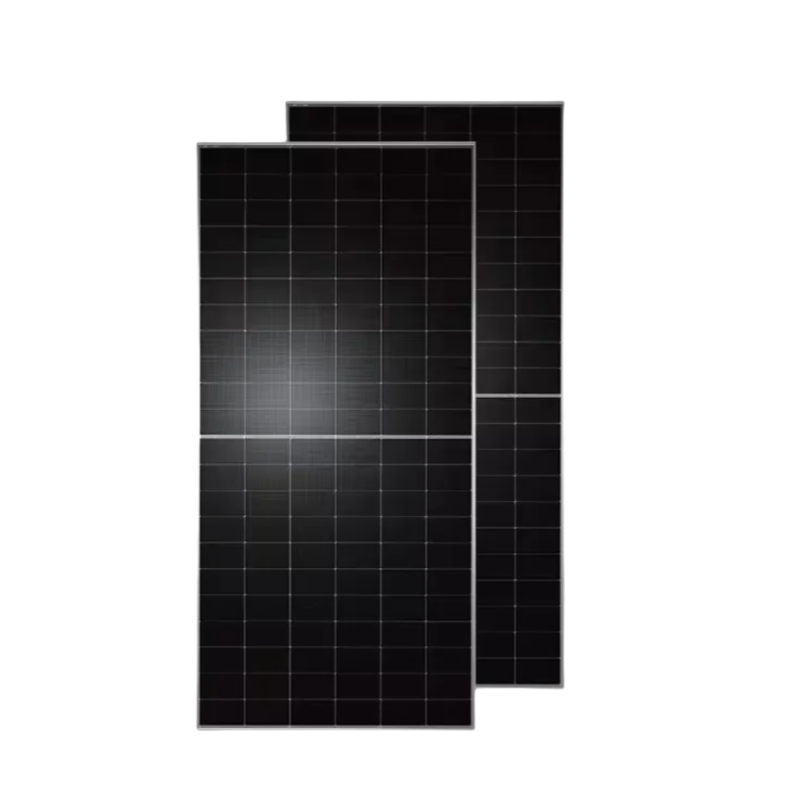

BWGPM610W(132)
Brightway Solar
The BWGPM610W(132) solar module, with its outstanding features, is suitable for a wide range of applications. Its Module Type is designed to meet diverse installation requirements. Under STC (Standard Test Conditions), it achieves a Maximum Power of 610W, a Maximum Power Voltage of 40.8V, and a Maximum Power Current of 14.95A. The Power Tolerance of 0 - +3% and specific Temperature Coefficients ensure stable performance in different climates. With a Wind Load capacity of 2400Pa and Snow Load capacity of 5400Pa, it can be installed in areas with harsh weather conditions. It is ideal for residential rooftops, providing clean energy for households. Also, it is applicable in commercial solar power plants, contributing to large-scale power generation and reducing carbon emissions.
| Module Type | BWGPM610W(132) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 610 | 454.5 |
| Maximum Power Voltage (Vmp) | 40.8 | 37.76 |
| Maximum Power Current (lmp) | 14.95 | 12.04 |
| Open-circuit Voltage (Voc) | 49 | 45.35 |
| Short-circuit Current (lsc) | 15.86 | 12.77 |
| Module Efficiency STC (%) | 22.56% | |
| Operational Temperature(℃） | -40~+85°C | |
| MaximumSystemVoltage | 1500VDC | |
| Max Series Fuse Rating | 30A | |
| Power tolerance | 0~+3% | |
| Wind/Snow Load | 2400Pa/5400Pa | |
| Temperature coefficients of Voc | -0.230%/℃ | |
| Temperature coefficients of Isc | +0.045%/℃ | |
| Temperature Coefcient of Pmax | -0.280%/℃ | |
The BWGPM610W(132) solar module, with its outstanding features, is suitable for a wide range of applications. Its Module Type is designed to meet diverse installation requirements. Under STC (Standard Test Conditions), it achieves a Maximum Power of 610W, a Maximum Power Voltage of 40.8V, and a Maximum Power Current of 14.95A. The Power Tolerance of 0 - +3% and specific Temperature Coefficients ensure stable performance in different climates. With a Wind Load capacity of 2400Pa and Snow Load capacity of 5400Pa, it can be installed in areas with harsh weather conditions. It is ideal for residential rooftops, providing clean energy for households. Also, it is applicable in commercial solar power plants, contributing to large-scale power generation and reducing carbon emissions.
| Module Type | BWGPM610W(132) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 610 | 454.5 |
| Maximum Power Voltage (Vmp) | 40.8 | 37.76 |
| Maximum Power Current (lmp) | 14.95 | 12.04 |
| Open-circuit Voltage (Voc) | 49 | 45.35 |
| Short-circuit Current (lsc) | 15.86 | 12.77 |
| Module Efficiency STC (%) | 22.56% | |
| Operational Temperature(℃） | -40~+85°C | |
| MaximumSystemVoltage | 1500VDC | |
| Max Series Fuse Rating | 30A | |
| Power tolerance | 0~+3% | |
| Wind/Snow Load | 2400Pa/5400Pa | |
| Temperature coefficients of Voc | -0.230%/℃ | |
| Temperature coefficients of Isc | +0.045%/℃ | |
| Temperature Coefcient of Pmax | -0.280%/℃ | |
