BWGPG580W(144)
Brightway Solar

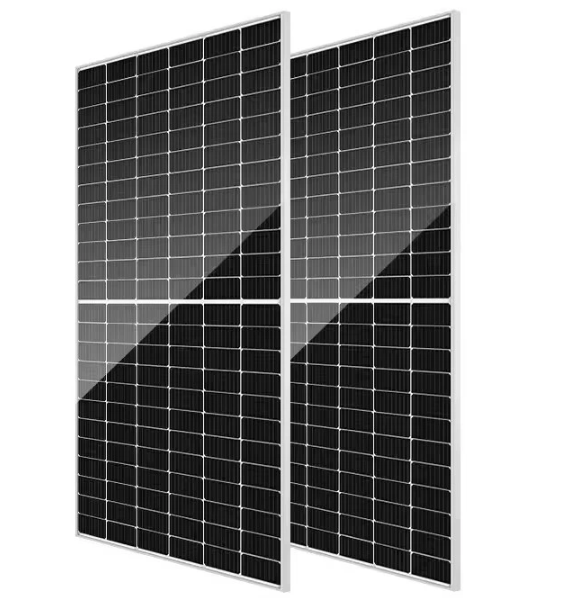

The BWGPG580W(144) solar module offers exceptional performance. With a maximum power of 580Wp at STC and 432.1Wp at NOCT, it features a Vmp of 41.80V and Imp of 13.88A. The Voc is 50.30V and Isc is 14.55A. It has a high module efficiency of 22.45%. This module is suitable for a wide range of applications, including residential rooftops, commercial buildings, and large-scale solar farms. It can power homes, offices, and industrial facilities, providing reliable and efficient energy generation for all.
| Module Type | BWGPG580W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 580Wp | 432.1Wp |
| Maximum Power Voltage (Vmp) | 41.80V | 38.68V |
| Maximum Power Current (lmp) | 13.88A | 11.17A |
| Open-circuit Voltage (Voc) | 50.30V | 47.15V |
| Short-circuit Current (lsc) | 14.55A | 11.71A |
| Module Efficiency STC (%) | 22.45% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
The BWGPG580W(144) solar module offers exceptional performance. With a maximum power of 580Wp at STC and 432.1Wp at NOCT, it features a Vmp of 41.80V and Imp of 13.88A. The Voc is 50.30V and Isc is 14.55A. It has a high module efficiency of 22.45%. This module is suitable for a wide range of applications, including residential rooftops, commercial buildings, and large-scale solar farms. It can power homes, offices, and industrial facilities, providing reliable and efficient energy generation for all.
| Module Type | BWGPG580W(144) | |
| STC | NOCT | |
| Maximum Power (Pmax) | 580Wp | 432.1Wp |
| Maximum Power Voltage (Vmp) | 41.80V | 38.68V |
| Maximum Power Current (lmp) | 13.88A | 11.17A |
| Open-circuit Voltage (Voc) | 50.30V | 47.15V |
| Short-circuit Current (lsc) | 14.55A | 11.71A |
| Module Efficiency STC (%) | 22.45% | |
| Operating Temperature(℃) | -40℃~+85℃ | |
| Maximum system voltage | 1500V DC | |
| Maximum series fuse rating | 30A | |
| Power tolerance | 0~+3% | |
| Temperature coefficients of Pmax | -0.29%/℃ | |
| Temperature coefficients of Voc | -0.25%/℃ | |
| Temperature coefficients of Isc | 0.045%/℃ | |
| Nominal operating cell temperature(NOCT) | 45±2℃ | |
